Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

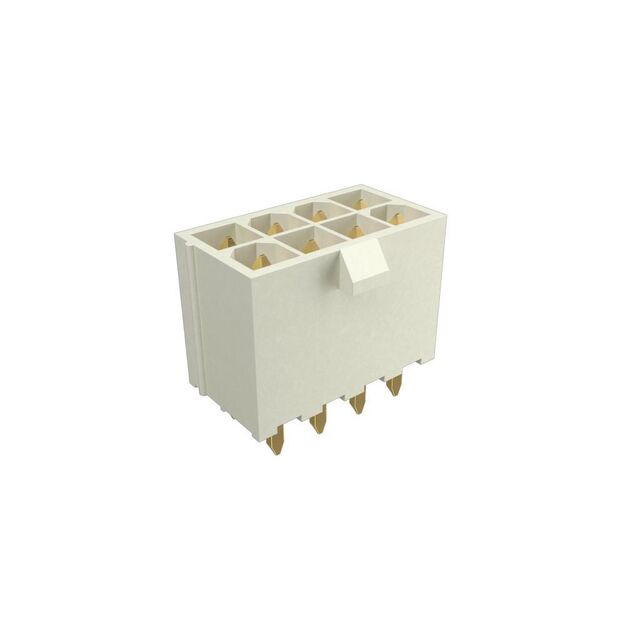

The Amphenol ICC (FCI) 10131319-08111G0LF is a Minitek Pwr 4.2 High Current header, designed for power-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and vertical through-hole mounting. The connector utilizes gold-plated contacts on a copper base, housed in natural-colored polyamide insulation rated UL94 V-0. It supports a current rating of 7A and a voltage rating of 600VAC, operating within a temperature range of -40°C to +105°C.
Feature Summary
- High-current capability within the Minitek Pwr 4.2 series
- Gold-plated contact finish for reliable conductivity
- Vertical through-hole termination style
- UL94 V-0 flammability rated natural insulation
Applications
- Power distribution on main circuit boards
- High-current signal interconnects
- Industrial equipment power interfaces
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer part number with official Amphenol documentation. Confirm that the specific ordering suffix matches the required contact plating and pin count specifications before finalizing procurement orders to ensure design compliance.
Selection Notes
Select this component when high current capacity is required alongside a compact 4.2 mm pitch. Ensure the vertical mounting orientation aligns with the PCB layout constraints. Verify that the 7A current rating and 600VAC voltage limits meet the system's electrical requirements under maximum operating temperatures.
Part Context
This header belongs to the Minitek Pwr 4.2 series, which provides robust power solutions for dense board layouts. The series offers various position counts and termination styles, maintaining consistent mechanical and electrical performance standards across different configurations for power delivery applications.
Replacement Considerations
Direct substitutes include other 8-position, 4.2mm pitch headers from the same Minitek Pwr 4.2 family, such as 10131319 variants with compatible plating options. Verify mechanical dimensions and contact material compatibility before substitution.
FAQ
What is the contact plating material for this part?
The contacts are gold-plated.
What is the flammability rating of the insulation?
The insulation material has a UL94 V-0 rating.
