Product Detailed Parameters

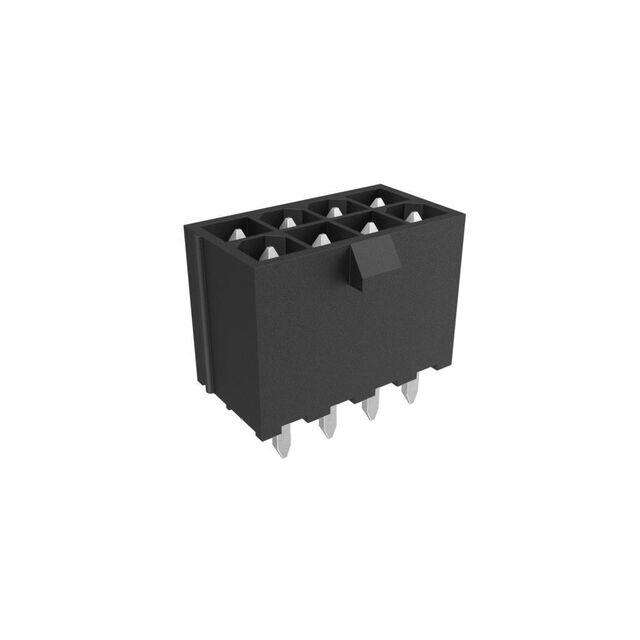

- Description：CONN HEADER VERT 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-08121G0LF is a Minitek Pwr 4.2 series power-to-board header connector designed for high-current applications. It features an 8-position, 2-row configuration with a 4.2 mm pitch and vertical through-hole mounting. The contacts are male pins made of copper with tin plating, rated for 12.5 A current and 600 VAC voltage. The housing is natural-colored polyamide, supporting an operating temperature range from -40°C to +105°C.
Feature Summary
- Supports high-current power distribution with 12.5 A rating per contact
- Vertical through-hole design ensures secure board attachment
- Tin-plated copper contacts provide reliable conductivity
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure power supplies
- Industrial control system power interfaces
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, row configuration, and termination style. Ensure the selected variant matches the required PCB layout dimensions and thermal management specifications for the target application environment.
Selection Notes
Select this component when a vertical, high-current power interface is required. The 4.2 mm pitch accommodates larger conductors compared to standard signal headers. Confirm that the 600 VAC insulation rating meets the system's electrical safety requirements and that the through-hole process aligns with the manufacturing capabilities.
Part Context
This part belongs to the Minitek Pwr 4.2 High Current family from Amphenol FCI. This series is engineered for robust power delivery in demanding environments, offering higher current capacity than standard signal connectors while maintaining a compact footprint suitable for dense electronic assemblies.
Replacement Considerations
Compatible substitutes within the same Minitek Pwr 4.2 series include 10131319-04211GRLF (4-position) and 10131319-08121GTLF (tin-plated variant). Verify mechanical compatibility before substitution.
