Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

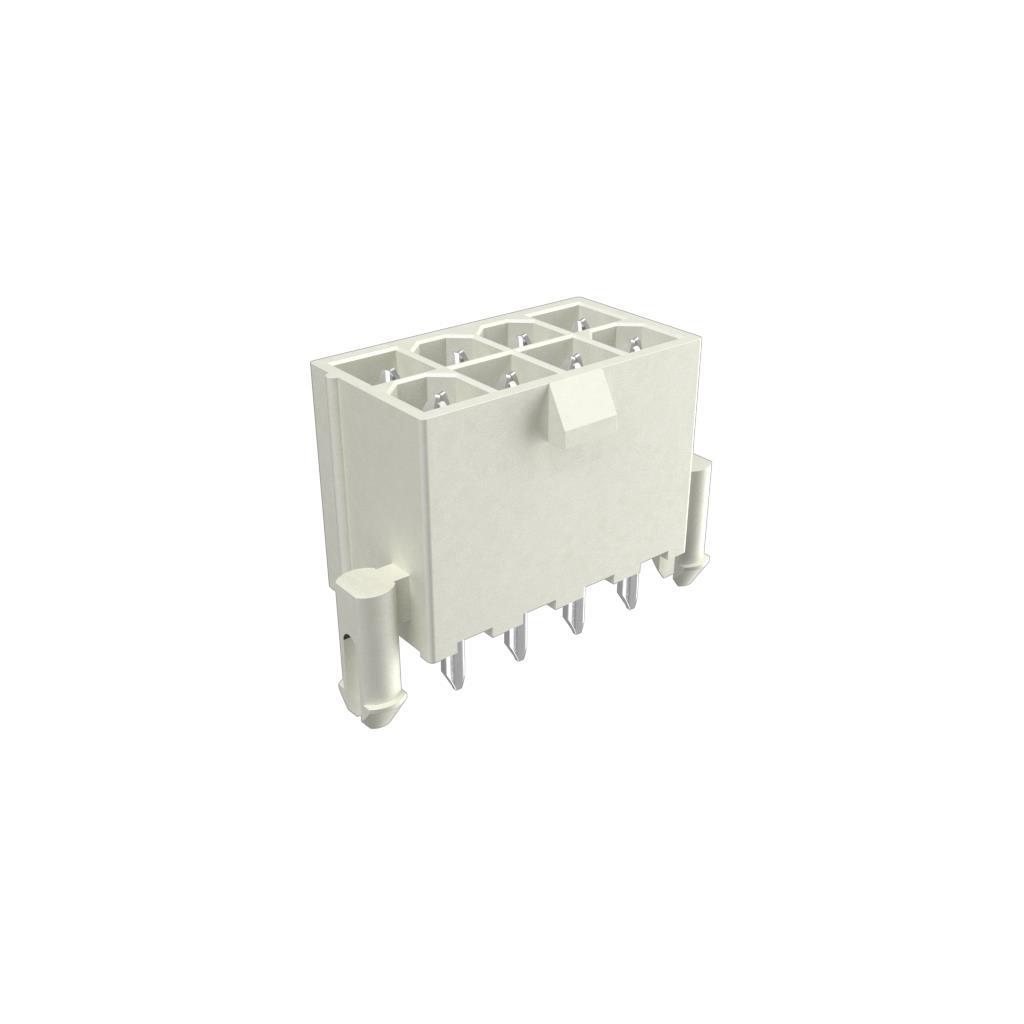

The Amphenol ICC (FCI) part number 10131319-082110PLF is a Minitek Power4.2 series header connector designed for power-to-board applications. It features an 8-position configuration with a 4.2 mm pitch and operates in a dual-row vertical orientation. The contacts are constructed from copper with gold plating, housed in a black insulator. Rated for 12.5 A current, it supports an operating temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
- Black housing provides visual identification and structural stability
Applications
- Industrial equipment power distribution
- Server and storage system interconnects
- Communication infrastructure power supply connections
Procurement Notes
Verify the specific ordering suffix PLF against official Amphenol documentation to confirm gold plating and packaging details. Confirm lead times and factory order requirements directly with the manufacturer or authorized distributors, as availability may vary by region. Ensure compatibility with mating receptacles before procurement.
Selection Notes
Select this component when a vertical, dual-row power header with a 4.2 mm pitch is required. The 12.5 A rating and -40°C to +105°C temperature range suit standard industrial and commercial environments. Verify that the board layout accommodates the dual-row footprint and that the gold contact finish meets the application's durability needs.
Part Context
This connector belongs to the Minitek Pwr 4.2 family, a product line from Amphenol FCI focused on power delivery solutions. The series is engineered for robust performance in demanding electronic systems, offering standardized dimensions and electrical characteristics to facilitate integration into various power management architectures.
Replacement Considerations
Consult official Amphenol cross-reference guides for verified substitutes. Generic equivalents may not match the precise 4.2 mm pitch or dual-row geometry required for proper mechanical fit and electrical continuity.
FAQ
What is the contact material and finish?
The contacts are made of copper with a gold plating finish.
Is this connector suitable for high-temperature environments?
Yes, it is rated for operation up to +105°C.
