Product Detailed Parameters

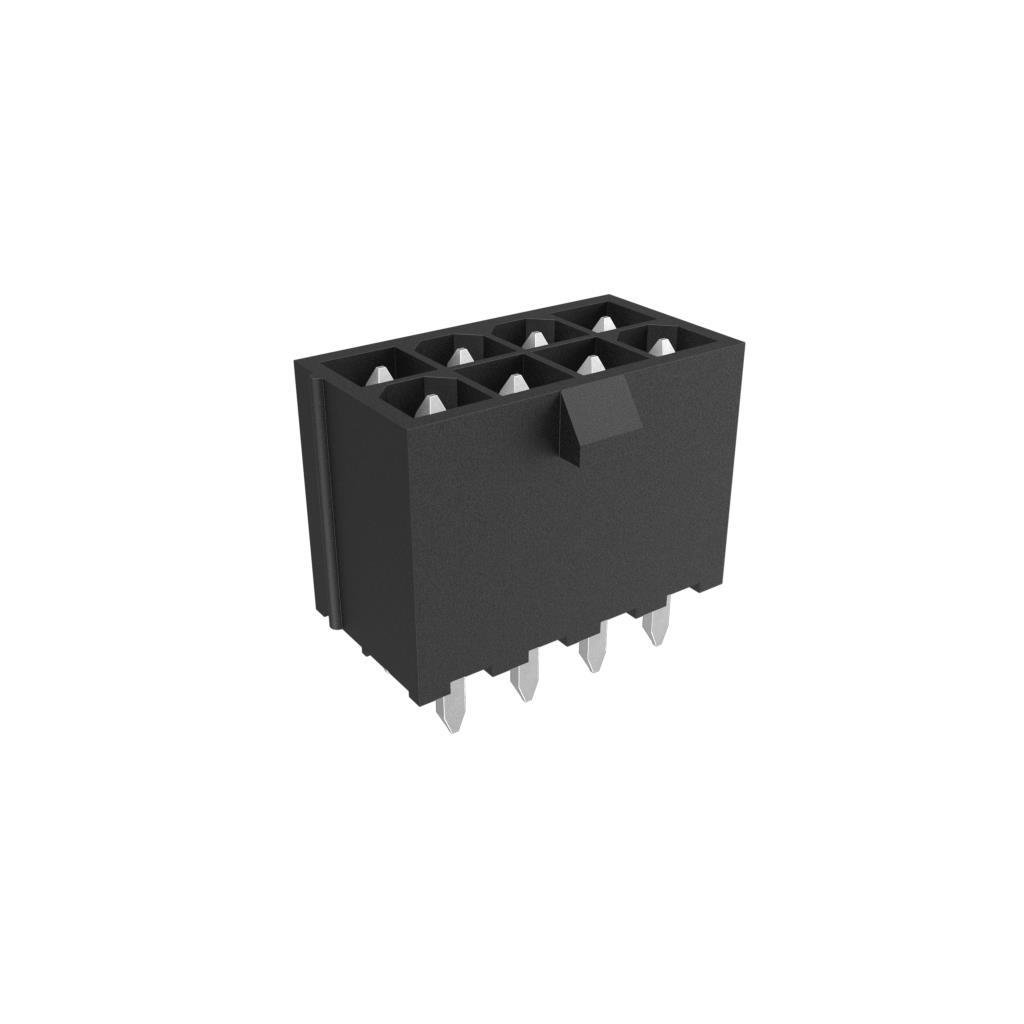

- Description：CONN HEADER VERT 8POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-08221G0LF is a Minitek Power 4.2 series power-to-board header connector. It features an 8-position, dual-row configuration with a 4.2 mm pitch. The connector utilizes gold-plated contacts and is designed for vertical through-hole mounting on printed circuit boards. Rated for 600 VAC and 12.5 A per contact, it employs Liquid Crystal Polymer insulation to support operation within a temperature range of -40°C to +105°C.
Feature Summary
- High current capacity rated at 12.5 A per contact for robust power distribution
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
- Liquid Crystal Polymer insulation provides high thermal stability and low moisture absorption
Applications
- Industrial control systems requiring high-power signal transmission
- Power supply modules needing secure board-to-board connections
- Telecommunications equipment utilizing standardized power headers
Procurement Notes
Verify the specific ordering suffix against manufacturer documentation to confirm contact plating and housing material specifications. Ensure compatibility with mating connectors in the Minitek Power 4.2 series. Confirm that the vertical through-hole mounting style aligns with the target PCB layout requirements before finalizing procurement orders.
Selection Notes
Select this component when applications demand high voltage isolation up to 600 VAC combined with significant current handling capabilities. The 4.2 mm pitch offers wider spacing compared to standard signal headers, reducing arcing risks. Verify that the operating environment remains within the specified -40°C to +105°C range to maintain insulation integrity.
Part Context
This connector belongs to the Minitek Power 4.2 family, designed specifically for power delivery rather than data signaling. The series distinguishes itself through larger contact spacing and higher current ratings suitable for industrial environments. It serves as a critical interface between power sources and circuit boards in heavy-duty electronic assemblies.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 8-position count, and dual-row vertical configuration. Verify that alternative parts offer equivalent 12.5 A current ratings and compatible LCP insulation materials to ensure mechanical and electrical interchangeability.
