Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

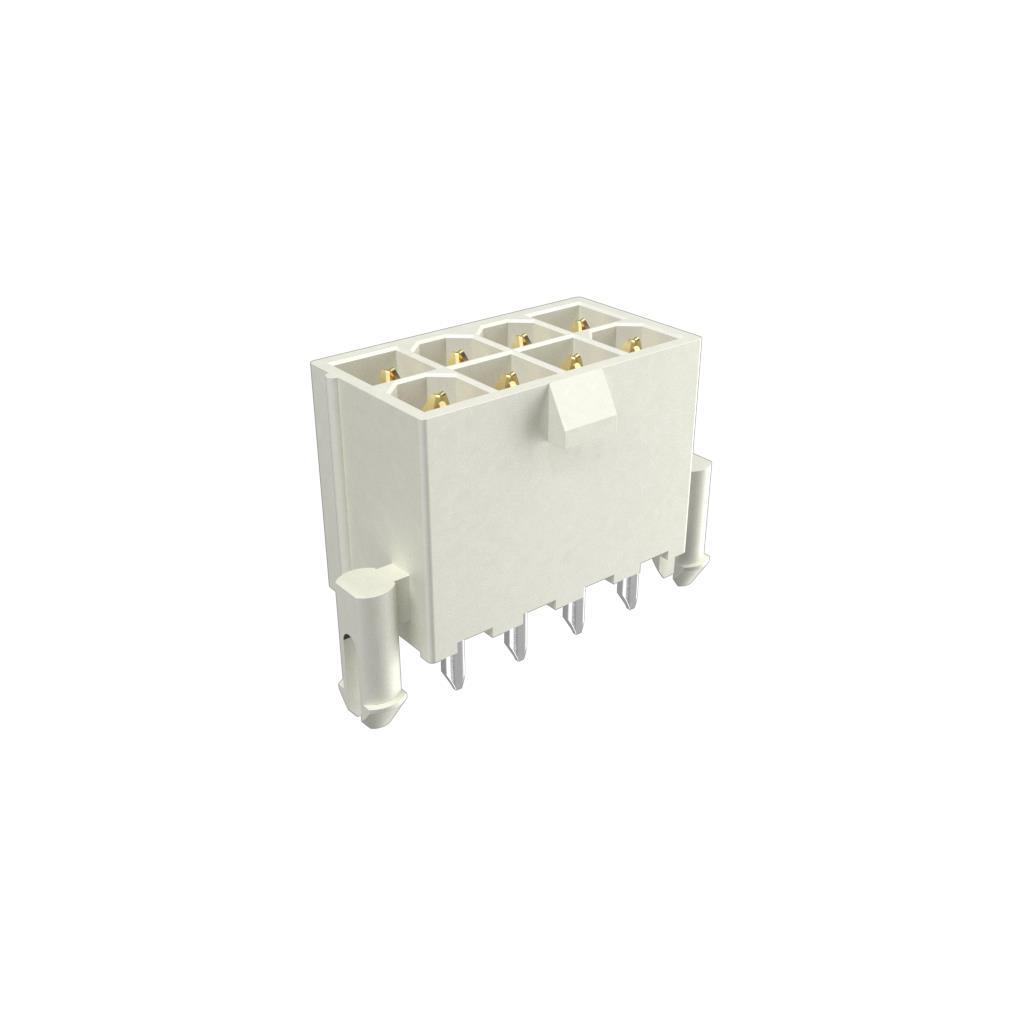

The Amphenol ICC (FCI) part number 10131319-084110PLF is a Power to the Board header connector from the Minitek Power4.2 series. It features an 8-position configuration with a 4.2 mm pitch and supports a current rating of 12.5 A. The connector is designed for vertical surface-mount installation in a dual-row arrangement. It utilizes gold-plated copper contacts and a natural polyamide insulation material, ensuring reliable performance within an operating temperature range of -40°C to +105°C.
Feature Summary
- Vertical surface-mount design for direct board integration
- Dual-row shrouded header construction for secure mating
- Gold-plated copper contact system for conductivity
- Polyamide insulation rated for high thermal stability
Applications
- Industrial automation control systems
- Power distribution units
- Factory automation equipment
- Heavy machinery instrumentation
Procurement Notes
Verify the specific ordering suffix against official manufacturer documentation to confirm plating type and packaging details. Ensure compatibility with mating receptacles regarding row spacing and pin count. Confirm that the vertical mounting style aligns with the mechanical constraints of the target assembly before finalizing procurement orders.
Selection Notes
Select this component when a robust power connection with a 4.2 mm pitch is required for vertical PCB mounting. The 12.5 A current rating suits moderate power applications. Verify that the natural color coding meets visual identification requirements and that the dual-row layout fits within the available board area without obstructing adjacent components.
Part Context
This connector belongs to the Minitek Power4.2 family, engineered for high-current power delivery in compact spaces. The series emphasizes reliability in industrial environments through durable materials and precise manufacturing tolerances. It serves as a critical interface between power sources and circuit boards in demanding operational settings.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific configuration.
