Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

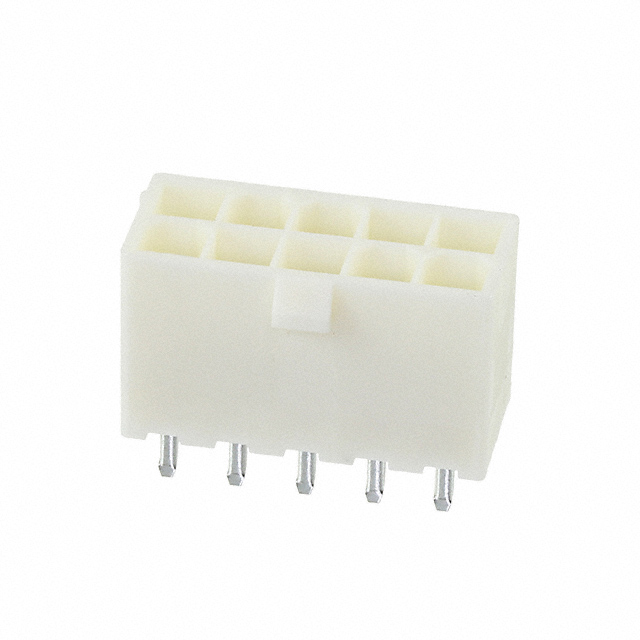

The Amphenol ICC (FCI) part number 10131319-1011100LF is a Minitek Pwr 4.2 Higher Current Connector header designed for power-dense applications. It features a 10-position configuration with a 4.2mm pitch and supports a current rating of up to 13.5A per contact. The component utilizes vertical through-hole termination and tin plating on copper contacts. It operates within a temperature range of -40°C to +105°C, ensuring reliability in demanding environments.
Feature Summary
- Supports high current density with ratings up to 13.5A per contact
- Vertical through-hole mounting for secure board integration
- Tin-plated copper contacts ensure reliable electrical conductivity
Applications
- Power-dense electronic systems
- Server and storage equipment power distribution
- Industrial control units requiring high current capacity
Procurement Notes
Verify the exact suffix and plating specifications against the manufacturer's official datasheet before procurement. Confirm that the 13.5A rating aligns with your system's thermal management capabilities. Ensure compatibility with mating receptacles from the same Minitek Pwr 4.2 series to maintain proper interface integrity and mechanical fit.
Selection Notes
Select this component when high current carrying capability is required in a compact form factor. The 4.2mm pitch allows for robust power traces while maintaining a low profile. Consider the vertical orientation for direct board edge connections or specific layout constraints where space efficiency is critical for power delivery.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), engineered for higher current applications compared to standard power connectors. The series is widely used in infrastructure and industrial sectors where reliable power transmission is essential. It complements other FCI solutions for comprehensive interconnect needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs carefully if considering alternatives.
