Product Detailed Parameters
- Description：CONN HEADER VERT 10POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

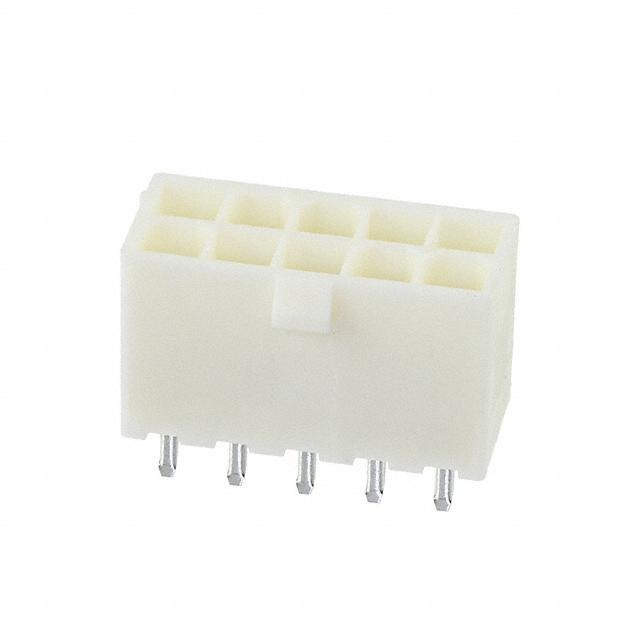

The Amphenol ICC (FCI) part number 10131319-10111G0LF is a Minitek Power4.2 High Current header connector designed for power-to-the-board applications. It features a vertical through-hole mounting configuration with a 4.2 mm pitch and two rows of contacts. The component provides 10 positions, rated for 12.5 A current per contact. The housing is black thermoplastic, and the copper alloy contacts are finished with 30 µin gold plating to ensure reliable conductivity and corrosion resistance.
Feature Summary
- Supports high current transmission up to 12.5 A per contact
- Utilizes a robust 4.2 mm pitch spacing for stable connections
- Features a vertical orientation for standard board integration
Applications
- Power distribution modules in industrial equipment
- High-current connections in server infrastructure
- Power supply units requiring reliable vertical headers
Procurement Notes
Verify the specific suffix 'G0LF' to confirm the gold plating specification and lead-free status. Ensure the ordering quantity aligns with manufacturer tray packaging requirements. Confirm that the 12.5 A rating meets the thermal and electrical demands of the target circuit design before finalizing procurement.
Selection Notes
Select this component when a vertical, high-current solution is required for board-level power distribution. The 4.2 mm pitch accommodates higher amperage compared to smaller pitches. Verify that the PCB footprint matches the 10-position layout and that the operating temperature range of -40°C to +105°C suits the environmental conditions.
Part Context
This connector belongs to the Minitek Power4.2 series, which is engineered for demanding power delivery scenarios. The series emphasizes high current capacity and mechanical stability. The 10131319-10111G0LF variant specifically addresses needs for multi-position vertical interconnects in compact power architectures.
Replacement Considerations
Compatible substitutes within the same family include 10131319-08421G0LF (8 positions) and 10131319-16211G0LF (16 positions). These variants share identical pitch, current ratings, and mounting characteristics, allowing for pin-count adjustments without redesigning the interface geometry.
