10131319-1012100LF

Overview

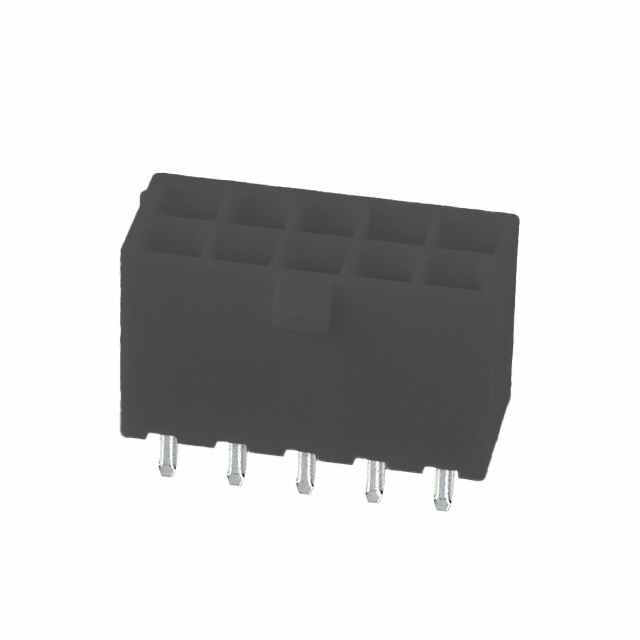

The 10131319-1012100LF is a Minitek Power 4.2 series through-hole header manufactured by Amphenol ICC (FCI). It features a vertical orientation with a 4.2 mm pitch and accommodates 10 positions in a dual-row configuration. The connector utilizes copper contacts with gold plating for reliable signal transmission. Designed for power-to-board applications, it supports a current rating of 12.5 A per contact and operates within a temperature range of -40°C to +105°C. The housing is constructed from black nylon, ensuring UL94 V-0 flammability ratings.

Feature Summary

• Dual-row vertical header design for high-density power distribution
• Gold-plated copper contacts ensure stable electrical connectivity
• Robust nylon housing meets UL94 V-0 flammability standards

Applications

• Power supply modules requiring board-level interconnection
• Industrial control systems utilizing high-current circuits
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm pin count and termination style. Ensure compatibility with mating receptacles regarding pitch and row alignment. Confirm that the gold plating thickness meets the application's wear requirements. Cross-reference the thermal rating with system operating conditions to prevent overheating during peak loads.

Selection Notes

Select this component when a vertical, dual-row power header is required for PCB mounting. The 4.2 mm pitch allows for higher current capacity compared to standard signal headers. Verify that the 12.5 A current rating aligns with the circuit's maximum load. Consider the through-hole termination method for robust mechanical stability in vibration-prone environments.

Part Context

This part belongs to the Minitek Power 4.2 family, designed for demanding power applications. The series offers various position counts and orientations to suit different board layouts. Amphenol ICC (FCI) produces these connectors to meet stringent industrial reliability standards, providing consistent performance across diverse electronic assemblies.

Replacement Considerations

Direct substitutes include other 10-position, 4.2 mm pitch vertical headers from compatible manufacturers. Ensure replacement parts match the dual-row configuration and gold-plated contact specifications. Verify that alternative components maintain the same current rating and thermal characteristics.
