Product Detailed Parameters

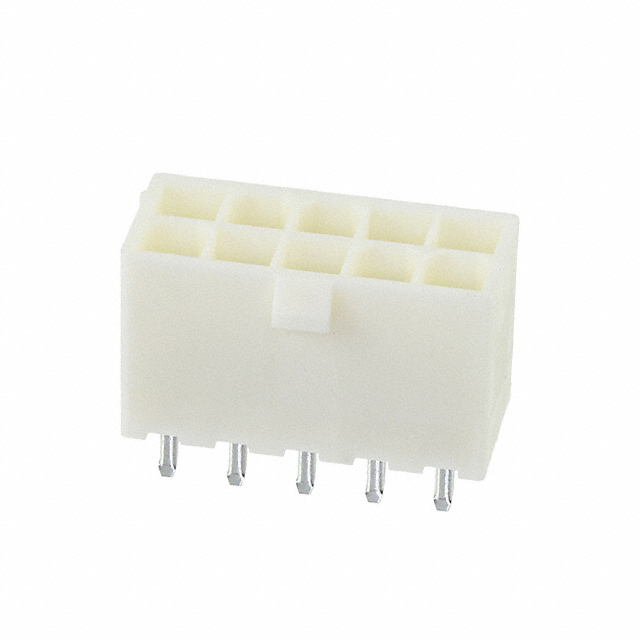

- Description：CONN HEADER VERT 10POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-1021100LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and provides 10 positions with tin-plated contacts. The connector supports a current rating of 12.5 A per contact and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts and a black insulator, it offers an insulation resistance of 1 GOhm.
Feature Summary
- Double-row vertical header configuration for high-density power distribution
- Tin-plated copper contacts for reliable conductivity
- Robust mechanical design suitable for industrial environments
Applications
- Industrial equipment power interfaces
- Factory automation systems
- Power distribution units
Procurement Notes
Verify the specific ordering suffix requirements directly with the manufacturer or authorized distributors. Confirm that the tin-plated variant matches the application's environmental needs. Check for any factory special order constraints or lead time variations associated with this specific part number before finalizing procurement plans.
Selection Notes
Select this component when a double-row vertical header with a 4.2 mm pitch is required. Ensure the 12.5 A current rating and -40°C to +105°C operating temperature range meet the system specifications. Verify compatibility with mating receptacles in the Minitek Power4.2 series.
Part Context
This component belongs to the MinitekPwr 4.2 series by Amphenol FCI. It is categorized under power connectors and serves as a power-to-board solution. The series is designed for robust interconnects in demanding industrial and commercial applications requiring reliable power transmission.
Replacement Considerations
Consult official substitution lists for compatible headers within the Minitek Power4.2 family. Verify pin count, pitch, and plating material equivalence before substituting.
