10131319-1022100LF

Overview

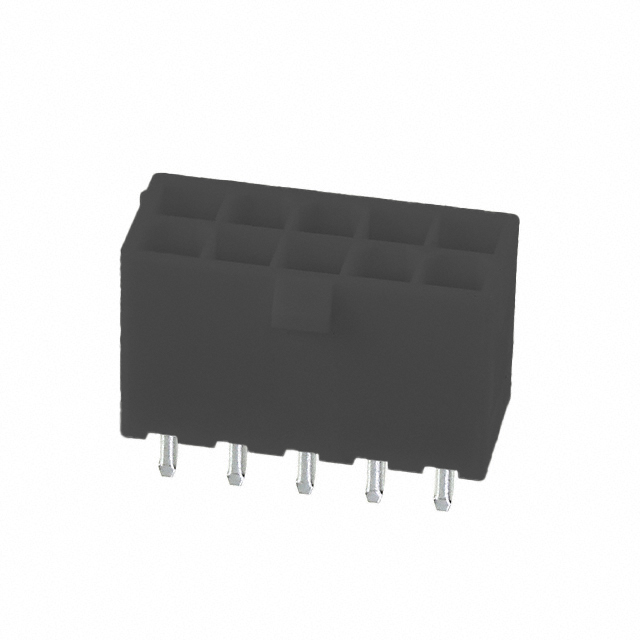

The Amphenol ICC (FCI) part number 10131319-1022100LF is a vertical power-to-board header from the Minitek Pwr 4.2 High Current series. It features a 4.2 mm pitch and offers 10 positions in a dual-row configuration. The connector utilizes through-hole termination for secure PCB mounting. Contact materials consist of copper with gold plating to ensure reliable conductivity. The housing is constructed from natural-colored thermoplastic, providing electrical insulation. This component is designed for high-current applications requiring robust mechanical stability.

Feature Summary

• Vertical orientation design for space-efficient board stacking
• High current capacity suitable for power distribution networks
• Gold-plated contacts for enhanced corrosion resistance and signal integrity

Applications

• Industrial power supply modules
• Server and storage backplanes
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the requested quantity aligns with standard factory packaging requirements to avoid partial reel issues. Ensure that the application environment temperature range falls within the specified operational limits of the connector material. Cross-reference the pin count and pitch specifications against the target PCB footprint to guarantee mechanical compatibility.

Selection Notes

Select this component when a vertical, high-current interconnection solution is required for power delivery systems. The 4.2 mm pitch allows for substantial contact cross-sections compared to smaller signal connectors. Consider the dual-row layout for maximizing current density within a constrained board area. Evaluate the thermal performance requirements against the connector's rated current capacity to prevent overheating during continuous operation.

Part Context

This header belongs to the Minitek Pwr 4.2 family, which specializes in high-current power connections. The series is engineered for demanding environments where reliability and low contact resistance are critical. It serves as a key interface between power sources and load boards in heavy-duty electronic assemblies.

Replacement Considerations

Direct substitutes within the same series include 10131319-1221100LF (12-position) and 10131319-2022100LF (20-position). Verify that alternative part numbers match the exact 4.2 mm pitch and vertical mounting style.
