Product Detailed Parameters

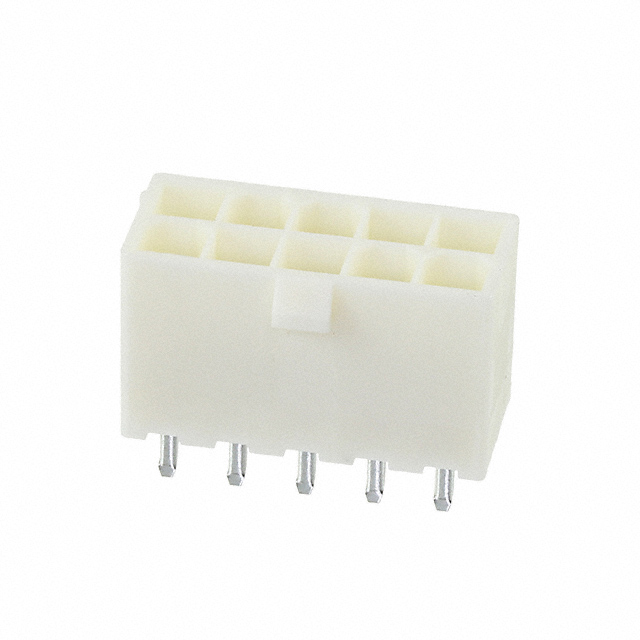

- Description：10131319-104110PLF-MTK 4.2 10P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-104110PLF is a Minitek Power 4.2 series header connector designed for power-to-board applications. It features a 10-position configuration with a 4.2 mm pitch and two rows of contacts. The component utilizes copper pins with tin plating and is constructed with a black nylon 6.6 housing. Rated for 12.5 A current and 600 VAC voltage, it supports through-hole solder termination at a right angle. The operating temperature range spans from -40°C to +105°C, with an insulation resistance of 1 GOhms.
Feature Summary
- Supports high-current power distribution with a 12.5 A rating per contact.
- Features a robust right-angle through-hole design for secure PCB mounting.
- Utilizes tin-plated copper contacts for reliable electrical conductivity.
Applications
- Industrial factory automation systems
- Power distribution units
- Heavy equipment instrumentation
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct pin count, row configuration, and plating material. Confirm that the required pitch and current ratings align with the target circuit design specifications before finalizing procurement orders.
Selection Notes
Select this component when a right-angle, through-hole power header is required for board-to-board connections. Ensure the PCB layout accommodates the 4.2 mm pitch and the specific mechanical height constraints associated with the Minitek Power 4.2 series family.
Part Context
This connector belongs to the Minitek Pwr 4.2 series, which provides standardized power interconnect solutions. The series is characterized by its 4.2 mm pitch and high current carrying capacity, suitable for demanding industrial environments requiring reliable power delivery.
Replacement Considerations
Cross-reference with other Amphenol FCI Minitek Power 4.2 headers sharing the same 10-position, dual-row, right-angle, and tin-plated specifications to identify compatible substitutes within the same product family.
