Product Detailed Parameters

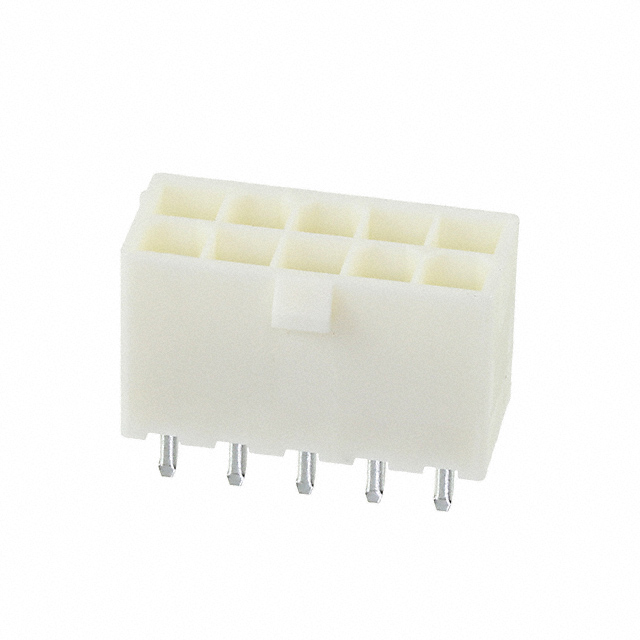

- Description：10131319-104120PLF-MTK 4.2 10P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-104120PLF is a Minitek Power 4.2 series power-to-the-board header connector. It features a 4.2 mm pitch and provides 10 positions arranged in a dual-row configuration. The component has a vertical mounting orientation and is rated for a current of 12.5 A with a voltage rating of 600V AC/DC. Constructed with copper alloy contacts and liquid crystal polymer insulation, it operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Integrated board lock feature ensures secure mechanical retention
- Gold-plated copper alloy contacts for reliable conductivity
- Liquid crystal polymer insulation material for thermal stability
Applications
- Industrial control systems requiring robust power connections
- Telecommunications infrastructure equipment
- High-density server and storage backplanes
- Automotive electronic control units
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official documentation to confirm contact plating and packaging details. Ensure compatibility with mating receptacles regarding pin count and row configuration. Confirm that the vertical mounting style aligns with the target PCB layout requirements before finalizing procurement orders.
Selection Notes
Select this component when a 4.2 mm pitch power connector is required for vertical board-to-board or cable-to-board applications. The 10-position dual-row format supports higher current loads compared to single-row alternatives. Verify that the operating temperature range meets the environmental specifications of the intended deployment scenario.
Part Context
This connector belongs to the Minitek Power 4.2 family, designed for demanding power delivery environments. The series emphasizes signal integrity and power management capabilities. Amphenol FCI integrates these connectors into broader interconnect solutions for information technology and commercial electronics markets.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 10-position count, and dual-row vertical form factor. Verify identical electrical ratings and mounting characteristics. Cross-reference official replacement lists from Amphenol ICC for validated equivalent part numbers.
