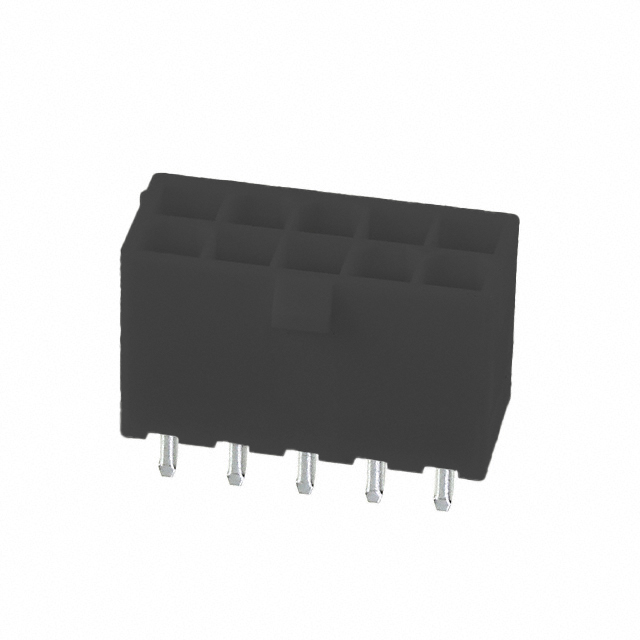

10131319-1042200LF

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:c5aafc73f0cc Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-1042200LF

Overview

The Amphenol ICC (FCI) part number 10131319-1042200LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and ten positions with male pin contacts. The connector utilizes tin-plated copper contacts housed in a natural-colored insulator, rated for a maximum operating temperature of +105°C and a minimum of -40°C. It offers an insulation resistance of 1 GOhm and is supplied in a reel package.

Feature Summary

Double-row vertical header configuration for high-density power distribution
Tin-plated copper contacts ensure reliable electrical conductivity
Natural-colored insulator housing provides visual identification

Applications

Power distribution in server infrastructure
Data communication equipment connections
Telecommunications system interconnects

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging details. Ensure compatibility with mating receptacles regarding row alignment and pitch. Confirm thermal ratings match the operational environment requirements before finalizing procurement specifications.

Selection Notes

Select this component when a double-row vertical header is required for power applications. The 4.2 mm pitch supports higher current capacities compared to smaller pitches. Verify that the tin plating meets corrosion resistance needs for the intended environment.

Part Context

This connector belongs to the Minitek Power4.2 series by Amphenol FCI. The series focuses on robust power solutions for data centers and industrial applications. It complements other board-level connectors within the Amphenol portfolio designed for high reliability.
