10131319-1211100LF

Overview

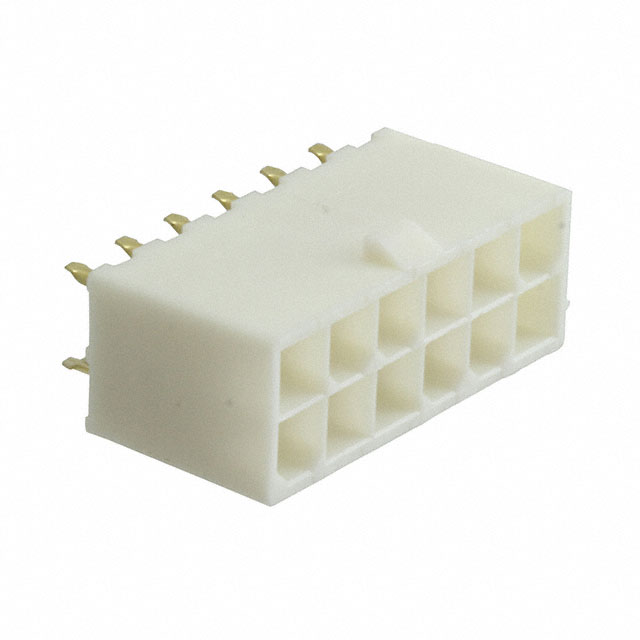

The Amphenol ICC (FCI) part number 10131319-1211100LF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features a vertical header configuration with 12 positions and a 4.2 mm pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable conductivity. Rated for 12.5 A current, the connector supports operation within a temperature range of -40°C to +105°C. It utilizes a double-row arrangement and is intended for surface mount or through-hole termination depending on the specific variant requirements.

Feature Summary

• High-current capability rated at 12.5 A per contact
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical orientation for compact board stacking
• Minitek Power4.2 series design for robust power delivery

Applications

• Server and storage equipment power distribution
• Industrial control system power interfaces
• Telecommunications infrastructure power boards
• Data center hardware power connections

Procurement Notes

Verify the exact suffix and RoHS status with the manufacturer before ordering, as lead times may vary for specialized power connectors. Confirm that the 12-position configuration matches the target PCB footprint. Ensure compatibility with mating receptacles in the Minitek Power4.2 family. Check for any recent product change notifications regarding material specifications or packaging updates.

Selection Notes

Select this component when high current density is required in a vertical form factor. The 4.2 mm pitch allows for substantial conductor cross-sections compared to smaller pitches. Verify that the operating environment stays within the specified -40°C to +105°C range. Ensure the PCB layout accommodates the double-row terminal spacing and mounting requirements for stable mechanical connection during thermal cycling.

Part Context

This part belongs to the Minitek Power4.2 family, which provides high-power interconnect solutions for demanding electronic applications. The series is known for its reliability in server and industrial environments. Amphenol ICC designs these connectors to meet strict performance standards for signal integrity and power handling in dense configurations.

Replacement Considerations

Direct substitutes include other parts within the Minitek Power4.2 series with matching pin counts and pitch. Verify mechanical dimensions and electrical ratings before substituting. Cross-reference with Amphenol's official replacement guides for discontinued or updated variants.
