10131319-12111G0LF

Overview

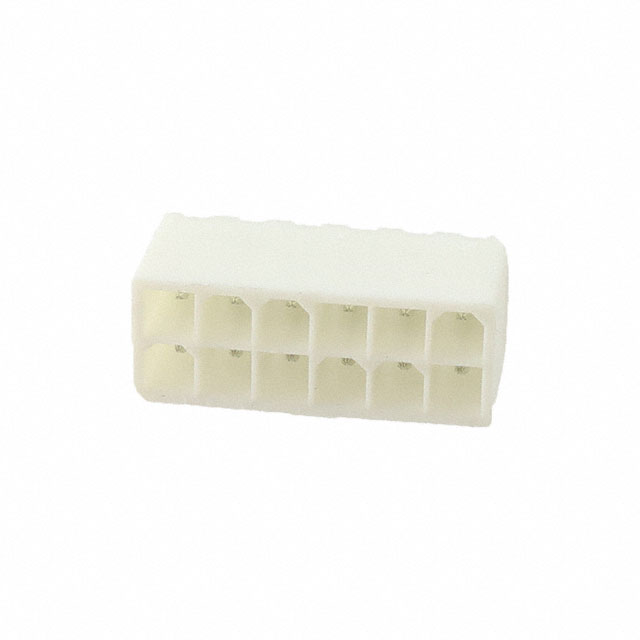

The Amphenol ICC (FCI) part number 10131319-12111G0LF is a Minitek Pwr 4.2 High Current vertical header connector designed for power-to-board applications. It features a 12-position configuration with a 4.2 mm pitch and two rows of contacts. The connector utilizes copper alloy terminals with gold plating to ensure reliable conductivity and corrosion resistance. Constructed with natural-colored thermoplastic insulation rated UL94 V-0, it supports through-hole mounting on printed circuit boards. The component operates within a temperature range of -40°C to +105°C and is rated for high current loads, making it suitable for demanding electronic environments.

Feature Summary

• High-current capability optimized for power distribution in compact board layouts
• Gold-plated copper terminals provide durable electrical contact and oxidation resistance
• Vertical through-hole design facilitates direct PCB integration without additional height constraints

Applications

• Industrial control systems requiring robust power connections
• Telecommunications infrastructure equipment
• Automotive electronics and power management modules

Procurement Notes

Verify the specific ordering suffix to confirm terminal plating thickness and insulation color variants. Ensure compatibility with mating power sockets from the same Minitek Pwr 4.2 series. Confirm that the selected variant meets the required current rating for your specific application load. Check for any recent product change notices regarding material substitutions or manufacturing location updates before finalizing procurement orders.

Selection Notes

Select this connector when high current capacity is required in a vertical form factor. The 4.2 mm pitch allows for wider trace spacing compared to standard signal headers. Verify that the PCB pad layout matches the specified pin count and row arrangement. Consider the operating temperature range to ensure performance stability under thermal stress conditions during continuous operation.

Part Context

This component belongs to the Minitek Pwr 4.2 series, which focuses on high-current interconnect solutions. The series offers various position counts and mounting styles to accommodate different power delivery requirements. It serves as a critical interface between power sources and circuit boards in heavy-duty electronic assemblies.

Replacement Considerations

Direct substitutes include other 12-position, 4.2mm pitch vertical headers from the Minitek Pwr 4.2 family, such as 10131319-12111GRLF or 10131319-1211100LF, depending on required plating and housing color. Cross-brand replacements require strict verification of pitch, current rating, and mechanical footprint compatibility.
