Product Detailed Parameters

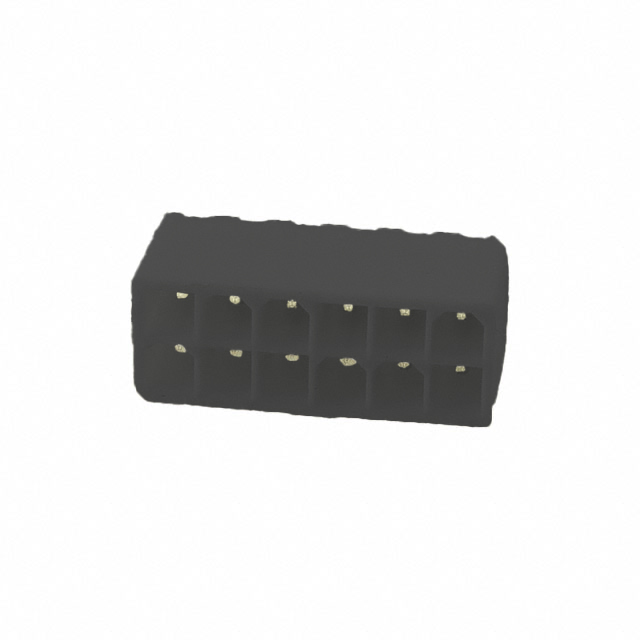

- Description：CONN HEADER VERT 12POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-1212100LF is a vertical power-to-board header connector belonging to the MinitekPwr 4.2 series. It features a 12-position configuration with a 4.2 mm pitch and dual rows. The component utilizes copper contacts with gold plating for reliable conductivity. Designed for surface-mount installation, it supports high-current applications with a rated current of 12.5 A per contact. The housing is black, and the unit operates within a temperature range of -40°C to +105°C.
Feature Summary
- High-current power delivery capability suitable for dense board layouts
- Dual-row vertical header design for efficient space utilization
- Gold-plated copper contacts ensure stable electrical performance
- Surface-mount termination facilitates automated assembly processes
Applications
- Server and storage system power distribution
- Telecommunications equipment power interfaces
- Industrial control board power connections
- Data center infrastructure power modules
Procurement Notes
Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required current rating and thermal operating limits for the target application environment. Cross-reference the package type to confirm surface-mount compatibility during procurement.
Selection Notes
Select this component when a compact, high-current vertical interconnect is required for power distribution on printed circuit boards. The 4.2 mm pitch allows for significant current capacity while maintaining a small footprint. Consider the dual-row layout for increased pin density in constrained spaces compared to single-row alternatives.
Part Context
This connector is part of the MinitekPwr 4.2 family from Amphenol ICC (FCI), designed specifically for power-to-board applications. The series offers various position counts and mounting options to support diverse electronic systems. It provides a robust solution for distributing power in modern electronics where space efficiency and reliability are critical.
Replacement Considerations
Consult the manufacturer's cross-reference guide for direct replacements. Verify that any substitute maintains the 4.2 mm pitch, 12-position count, and dual-row vertical configuration to ensure mechanical and electrical compatibility.
