Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

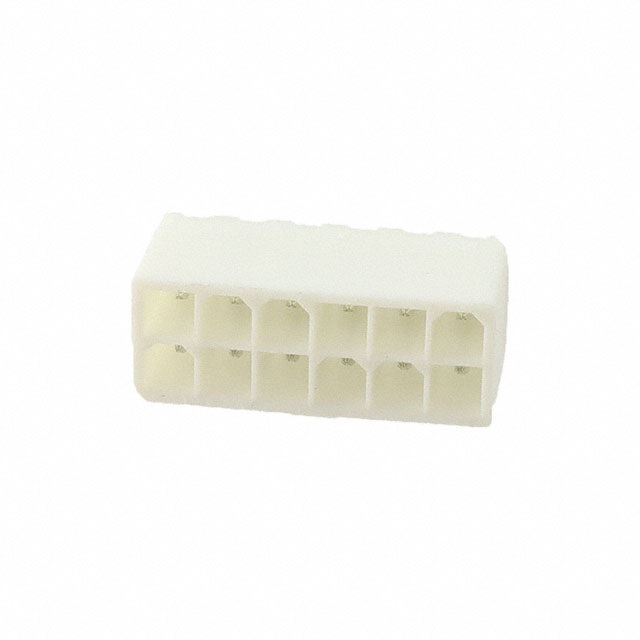

The Amphenol ICC (FCI) part number 10131319-122110PLF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and provides 12 positions with gold-plated copper contacts. The connector supports a current rating of 12.5 A per contact and operates within a temperature range of -40°C to +105°C. Constructed with black polyamide insulation, it offers high insulation resistance and board lock functionality for secure mounting.
Feature Summary
- Double-row vertical header configuration for compact power distribution
- Gold-plated copper alloy contacts ensure reliable conductivity
- Board lock feature provides mechanical stability during operation
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure boards
- Industrial control system power interfaces
Procurement Notes
Verify the specific ordering suffix PLF confirms gold plating and black housing against the official datasheet. Confirm availability through authorized distributors as this component may be subject to factory special order requirements. Ensure the selected variant matches the required pin count and row configuration for your PCB layout.
Selection Notes
Select this connector when a 4.2 mm pitch double-row header is required for high-current applications. Verify that the 12-position layout fits the designated board area. Ensure the operating environment stays within the specified -40°C to +105°C range. Confirm compatibility with mating power sockets from the same Minitek Power4.2 series.
Part Context
This component belongs to the Minitek Power4.2 series by Amphenol FCI, a line specialized in robust power connections. The series is widely used in datacom and industrial markets where reliable power delivery is critical. The 10131319 prefix indicates a standard vertical header format within this family.
Replacement Considerations
Direct substitutes include other 12-position, 4.2mm pitch double-row headers from the Minitek Power4.2 series with matching gold plating. Cross-reference with Amphenol FCI documentation for equivalent part numbers with identical electrical ratings and mechanical dimensions.
