Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

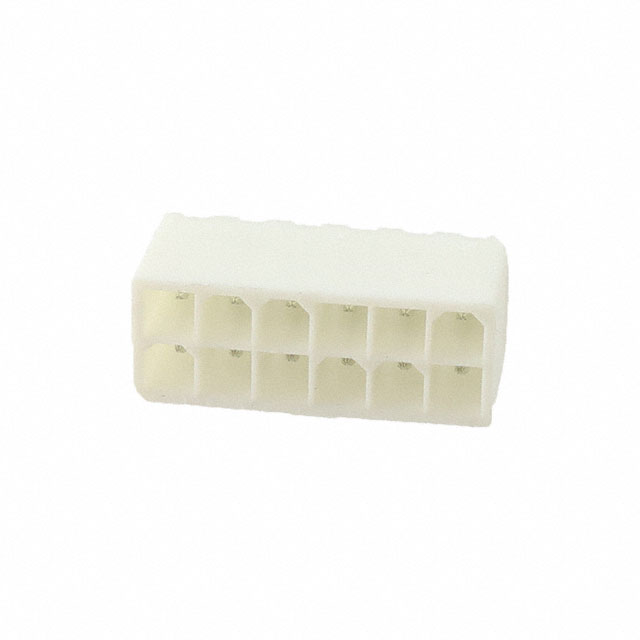

The Amphenol ICC (FCI) part number 10131319-12211GPLF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and contains 12 positions arranged in two rows. The connector utilizes tin-plated copper contacts housed in a natural-colored insulator, rated for a maximum operating temperature of +105°C and a minimum of -40°C. Electrical specifications include a current rating of 12.5 A and an insulation resistance of 1 GOhms. The component is supplied in reel packaging.
Feature Summary
- Double-row vertical header configuration for high-density power distribution
- Tin-plated copper contacts ensure reliable conductivity and corrosion resistance
- Natural-colored insulator housing provides visual identification and structural integrity
Applications
- Power supply modules requiring board-level interconnection
- Industrial equipment with high-current power routing needs
- Telecommunications infrastructure hardware
Procurement Notes
Verify the specific ordering suffix 'GPLF' against the manufacturer's official documentation to confirm plating and material specifications. Ensure that the required reel quantity matches the factory pack size of 400 units. Confirm availability status as this item may be subject to special order requirements or limited distribution channels depending on current manufacturing schedules.
Selection Notes
Select this component when a 4.2 mm pitch vertical header is required for power applications. The 12-position double-row layout suits designs needing compact power input connections. Verify that the 12.5 A current rating and +105°C thermal limit align with the system's electrical and environmental constraints before finalizing the design integration.
Part Context
This connector belongs to the MinitekPwr 4.2 series, a product line focused on power management solutions. The series supports efficient power delivery in space-constrained electronic assemblies. Amphenol FCI designs these components to meet rigorous standards for signal integrity and power handling in commercial and industrial markets.
Replacement Considerations
The part number 10131319-12211RLF serves as a confirmed substitute within the same series, offering identical mechanical dimensions and pin configuration with alternative plating options.
