Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Glow Wire Compliant, Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

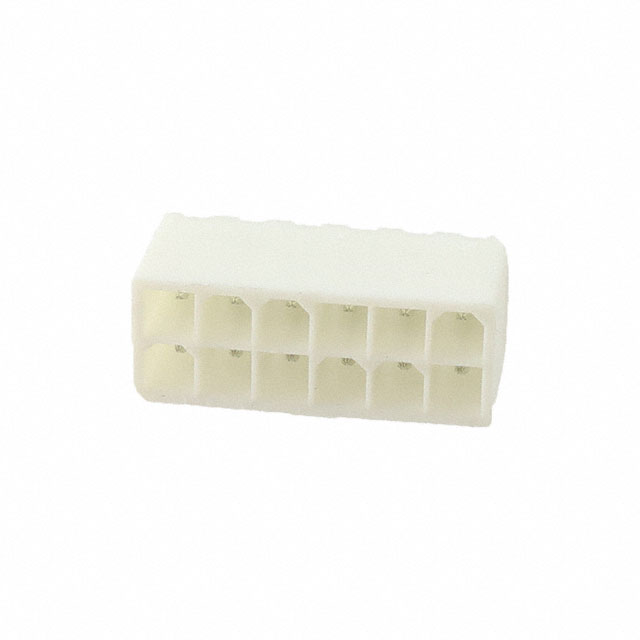

The Amphenol ICC (FCI) part number 10131319-12212GRLF is a Minitek Power4.2 series power-to-board connector header. It features a vertical, double-row configuration with 12 positions and a 4.2 mm pitch. The contacts are copper alloy with tin plating, rated for 12.5 A current and 600 VAC voltage. Designed for through-hole mounting, it operates within a temperature range of -40°C to +105°C. The housing is natural-colored polyamide, ensuring high insulation resistance of 1 GOhms.
Feature Summary
- Vertical double-row header design for efficient board space utilization
- High current carrying capacity suitable for power distribution applications
- Robust tin-plated contacts ensure reliable electrical connectivity
- Through-hole termination provides secure mechanical attachment
Applications
- Server and storage system power distribution
- Industrial control panel interconnections
- Telecommunications equipment power modules
- General-purpose power supply board connections
Procurement Notes
Verify the specific ordering suffix requirements directly with Amphenol FCI or authorized distributors. Confirm that the tin-plated contact variant matches your application needs, as gold-plated alternatives exist within the same series. Ensure compatibility with mating receptacles before finalizing procurement orders.
Selection Notes
Select this component when a vertical, double-row power header with a 4.2 mm pitch is required. The 12-position count fits standard power bus layouts. Verify that the 12.5 A rating per contact meets circuit demands. Consider the tin plating for cost-effective general use rather than high-cycle signal applications.
Part Context
This connector belongs to the Minitek Power4.2 family, designed for robust power delivery in compact electronic assemblies. The series offers various position counts and plating options to suit different thermal and electrical requirements within server and industrial infrastructure.
Replacement Considerations
The variant 10131319-122110RLF serves as a direct substitute with identical specifications but utilizes a reel packaging format instead of trays. Both share the same 12-position, 4.2 mm pitch, and tin-plated contact characteristics.
