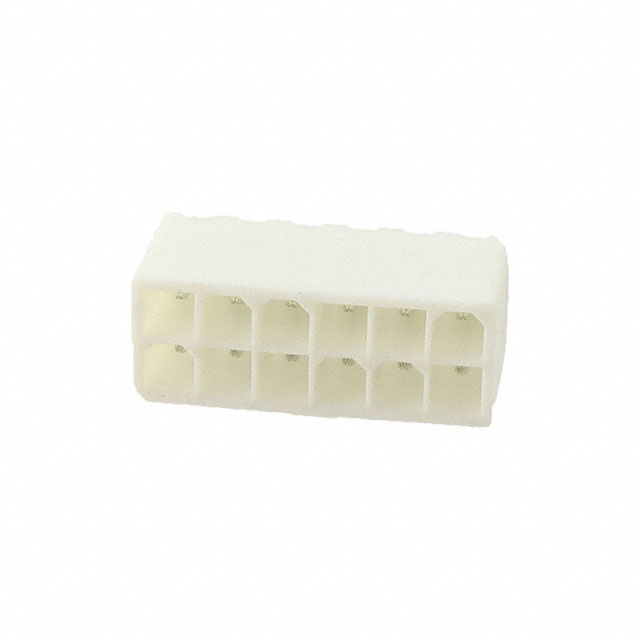

10131319-12212GTLF

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:494a77a9ad16 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Glow Wire Compliant, Pick and Place
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-12212GTLF

Overview

The Amphenol ICC (FCI) part number 10131319-12212GTLF is a Minitek Power4.2HCC header connector designed for power-to-board applications. It features a 12-position, 2-row configuration with a 4.2 mm pitch and vertical surface mount installation. The contacts are made of copper alloy with tin plating, rated for 12.5 A current at 105°C maximum operating temperature. This component belongs to the MinitekPwr 4.2 series.

Feature Summary

Vertical surface mount design for direct board integration
High current capacity suitable for power distribution
Tin-plated contacts for reliable conductivity

Applications

Power supply modules
Industrial control systems
Server and storage equipment

Procurement Notes

Verify the specific ordering suffix 'GTLF' against official Amphenol documentation to confirm tin plating and lead-free status. Ensure compatibility with existing PCB footprint designs before procurement. Confirm availability through authorized distributors as this is a specialized industrial component.

Selection Notes

Select this connector when high-current power delivery is required in a compact vertical form factor. The 4.2 mm pitch accommodates significant current loads compared to smaller signal connectors. Verify that the 12.5 A rating meets the system's thermal and electrical requirements.

Part Context

This component is part of the MinitekPwr 4.2 series by Amphenol ICC (FCI). The series focuses on robust power interconnects for demanding environments. It complements other Minitek variants offering different pitches and configurations for diverse power management needs.

Replacement Considerations

Direct substitutes must match the 12-position, 2-row, 4.2 mm pitch specification. Verify mechanical dimensions and contact plating compatibility. Consult Amphenol ICC for approved alternative part numbers within the Minitek Power family.
