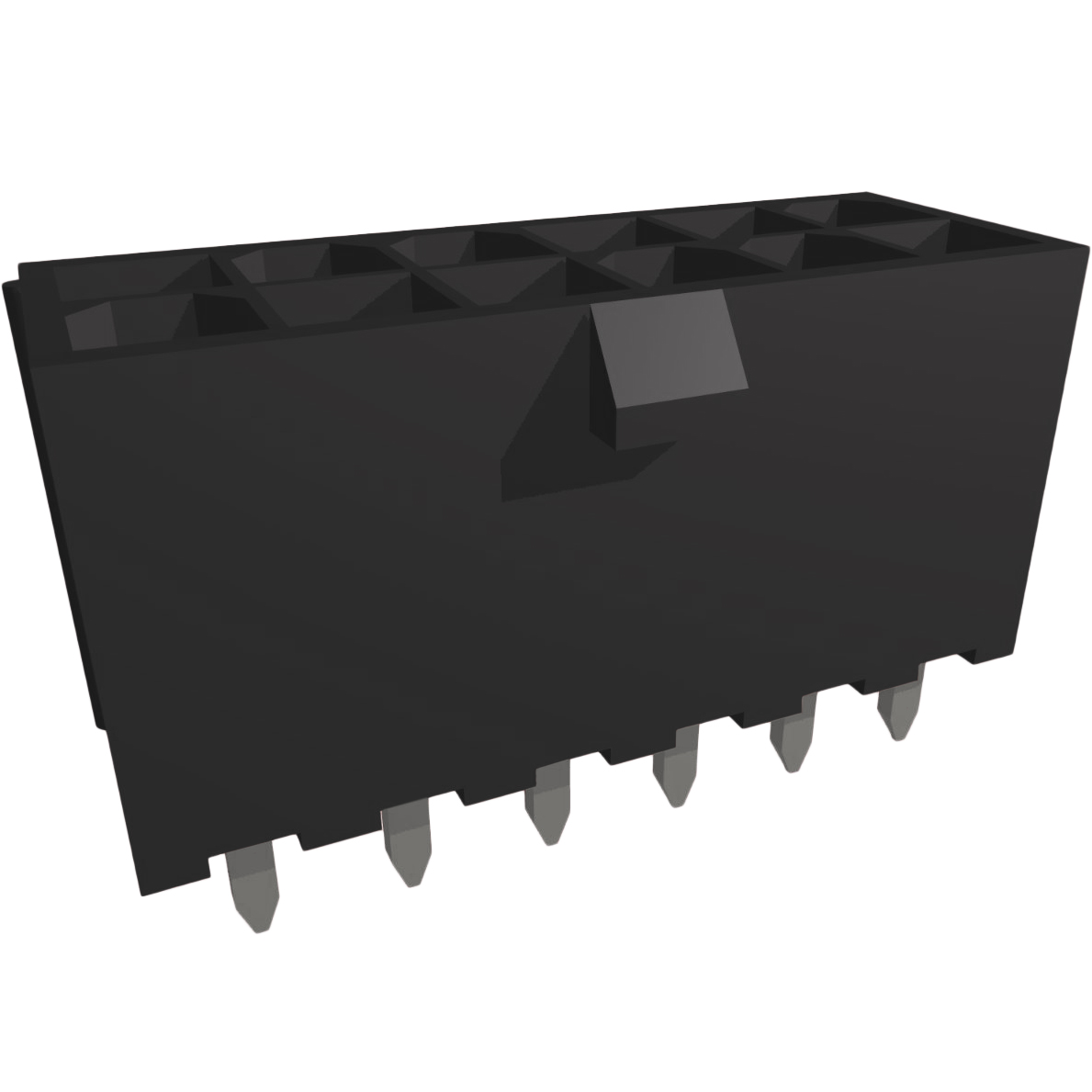

10131319-1222100LF

Description：CONN HEADER VERT 12POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:d8505f4a4528 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 12POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-1222100LF

Overview

The Amphenol ICC (FCI) 10131319-1222100LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and provides 12 positions with tin-plated copper contacts rated for 12.5 A. The connector operates within a temperature range of -40°C to +105°C, offers 1 GOhm insulation resistance, and utilizes a natural-colored housing.

Feature Summary

Double-row vertical header configuration for high-density power distribution
Tin-plated copper contacts ensure reliable electrical conductivity
Natural-colored insulating housing supports standard board integration

Applications

Server and storage equipment power distribution
Data communication infrastructure systems
Industrial instrumentation power interfaces

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm contact plating and material specifications. Confirm that the requested variant matches the required current rating and thermal performance for the target application environment before finalizing procurement orders.

Selection Notes

Select this component when a double-row vertical header with a 4.2 mm pitch is required for power delivery. Ensure the design accommodates the specified 12.5 A current rating per contact and the -40°C to +105°C operating temperature range for reliable system performance.

Part Context

This part belongs to the MinitekPwr 4.2 series, a line of power connectors engineered for robust performance in demanding environments. The series is widely utilized in data centers and telecommunications infrastructure to provide secure and efficient power connections between boards and backplanes.
