10131319-12221G0LF

Overview

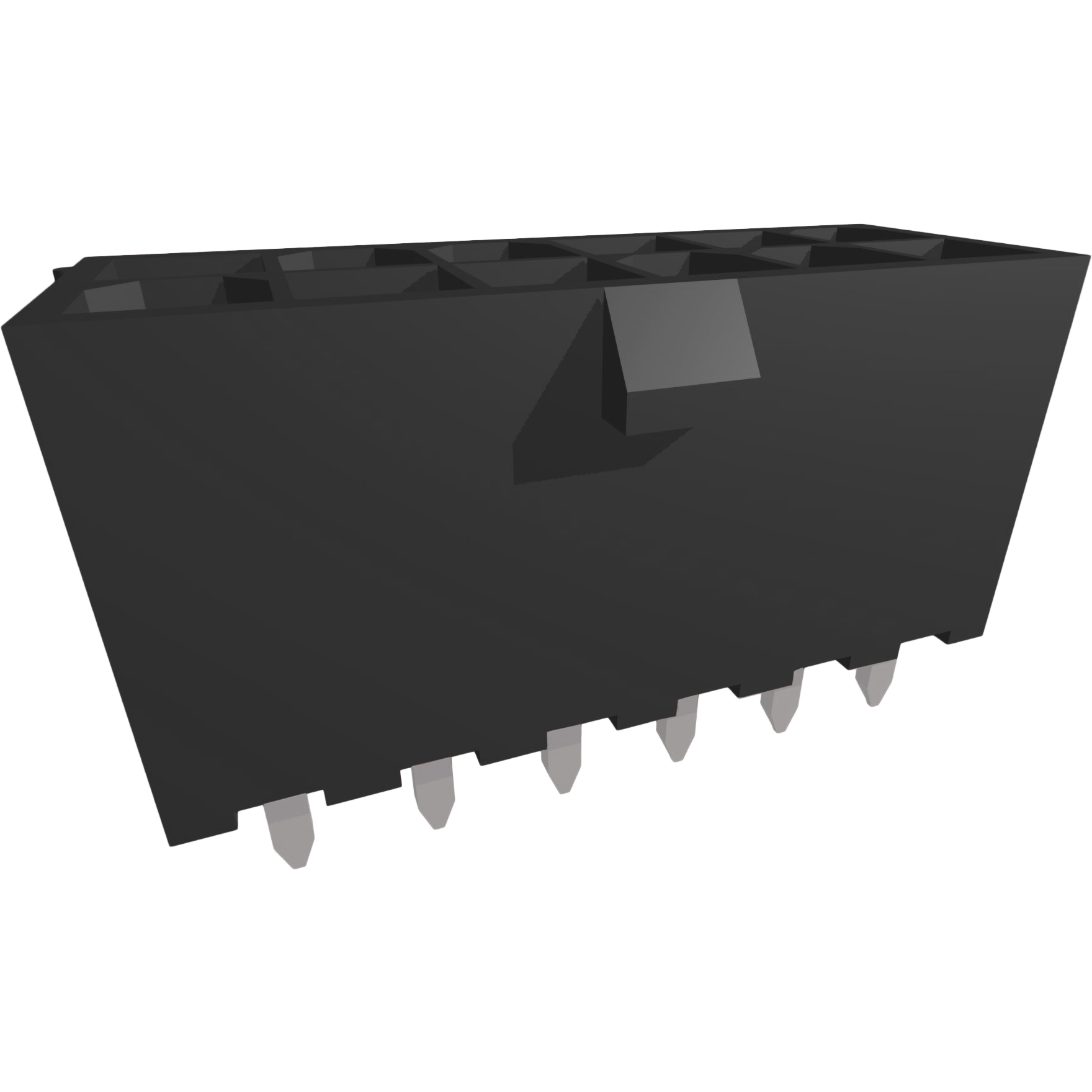

The Amphenol ICC (FCI) part number 10131319-12221G0LF is a vertical power-to-board header connector belonging to the Minitek Pwr 4.2 High Current series. It features a 12-position configuration with two rows, utilizing a 4.20mm (0.165 inch) mating pitch. The connector employs male pin contacts made of copper alloy, finished with gold plating for reliable conductivity. Designed for through-hole mounting, it supports a rated current of 12.5A per contact and operates within a temperature range of -40°C to +105°C. The housing is constructed from black thermoplastic material compliant with UL94 V-0 flammability standards.

Feature Summary

• High current capacity of 12.5A per contact for robust power distribution
• Gold-plated copper alloy contacts ensure low resistance and corrosion resistance
• Vertical through-hole design facilitates direct board-to-board or cable connections
• UL94 V-0 rated black thermoplastic insulation for fire safety

Applications

• Server and storage equipment power distribution
• Telecommunications infrastructure power modules
• Industrial control system power interfaces
• High-power consumer electronics internal connections

Procurement Notes

Verify the specific suffix 'G0LF' against the manufacturer's latest datasheet to confirm gold plating thickness and lead-free compliance status. Ensure the ordering quantity matches the manufacturer's standard packaging requirements, as this item may be subject to special order processing. Confirm that the 12-position variant aligns with the target PCB footprint and mechanical clearance constraints before finalizing procurement.

Selection Notes

Select this component when high current handling at 12.5A is required in a compact vertical form factor. The 4.20mm pitch provides ample spacing for high-voltage isolation compared to smaller signal connectors. Consider the through-hole mounting method for superior mechanical stability under vibration. Verify that the operating temperature range up to 105°C meets the thermal environment of the intended application enclosure.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), designed specifically for power delivery applications. The series offers various position counts and configurations to support diverse power distribution needs in dense electronic assemblies. As an FCI product, it adheres to rigorous quality standards for durability and electrical performance in demanding industrial and communication environments.

Replacement Considerations

Compatible substitutes within the same Minitek Pwr 4.2 family include 10131319-04211G0LF (4 positions) and 10131319-08421G0LF (8 positions). For different position counts, verify mechanical compatibility and current rating adequacy. Cross-reference with other Amphenol high-current headers only if pinout and pitch specifications match exactly.
