10131319-12411GPLF

Overview

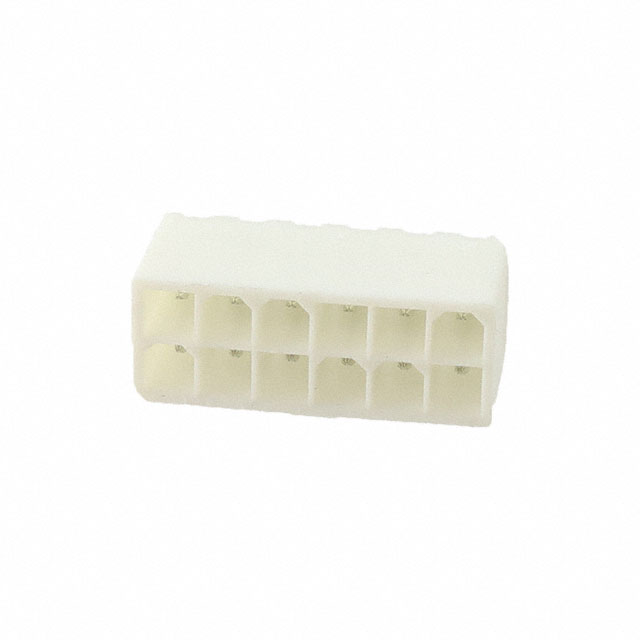

The Amphenol ICC (FCI) 10131319-12411GPLF is a Minitek Pwr 4.2 Higher Current Connector Header designed for power-dense applications. It features a 12-position, dual-row vertical through-hole configuration with a 4.2 mm pitch. The connector supports a current rating of up to 13.5 A per contact and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts featuring gold plating and natural thermoplastic insulation rated UL94 V-0, it ensures reliable electrical performance in demanding environments.

Feature Summary

• Supports high current density with ratings up to 13.5 A per contact
• Compliant with glow wire testing standards for enhanced safety
• Includes board lock mechanism for secure mechanical retention

Applications

• Power distribution modules
• Server and storage equipment power supplies
• Telecommunications infrastructure

Procurement Notes

Verify the complete part number including suffixes to ensure correct contact plating and packaging specifications. Confirm that the specific variant matches the required current rating and environmental compliance standards for your design. Cross-reference official datasheets to validate pin count and row configuration before procurement.

Selection Notes

Select this component when high current capacity is required in a compact form factor. Ensure the PCB layout accommodates the 4.2 mm pitch and dual-row spacing. Verify that the operating temperature range meets system requirements and that the glow wire compliance aligns with regulatory standards.

Part Context

This header belongs to the Minitek Pwr 4.2 series, engineered for robust power delivery in space-constrained designs. The series offers various position counts and termination options to support diverse power bus architectures in industrial and data center applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
