Product Detailed Parameters
- Description：10131319-1241200LF-MTK 4.2 DR 12
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

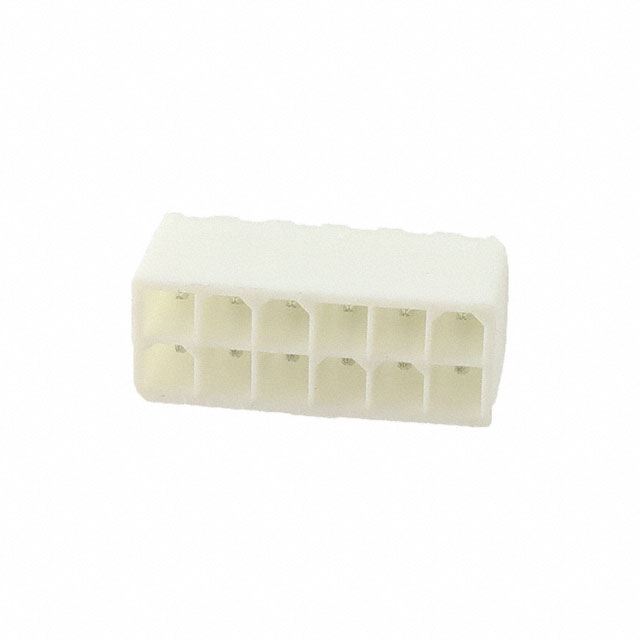

The Amphenol ICC (FCI) part number 10131319-1241200LF is a Minitek Power 4.2 series power-to-board connector header. It features a 4.2 mm pitch, 12 positions, and a dual-row configuration with a vertical mounting angle. The contacts are made of copper alloy with a 30.0 µin (0.76 µm) gold finish on the mating surface and tin plating on the post. Rated for 12.5 A current, it operates within a temperature range of -40°C to +105°C and has an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row vertical header design for board-to-board power distribution
- Gold-plated contact surfaces ensure reliable electrical conductivity
- High current rating of 12.5 A per contact position
- Robust construction suitable for industrial operating temperatures
Applications
- Industrial equipment power distribution
- Factory automation systems
- Power supply modules
- Heavy machinery control boards
Procurement Notes
Verify the specific suffix requirements against the official datasheet to confirm contact finish and packaging details. Ensure the selected variant matches the required current rating and thermal specifications for the target application. Confirm availability status as this component may be subject to discontinuation or limited stock conditions.
Selection Notes
Select this connector when a high-current vertical power interface is required. The 4.2 mm pitch allows for substantial contact spacing, supporting higher amperage loads compared to smaller pitch alternatives. Verify that the PCB layout accommodates the dual-row footprint and that the housing material meets the environmental exposure requirements of the installation site.
Part Context
This component belongs to the Minitek Power 4.2 series by Amphenol ICC (FCI), formerly Framatome Connecti International. The series specializes in robust power interconnect solutions designed for demanding environments. These connectors are engineered to provide secure connections in applications requiring high reliability and durability under mechanical stress.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official cross-reference guide for compatible alternatives.
