10131319-124120PLF

Overview

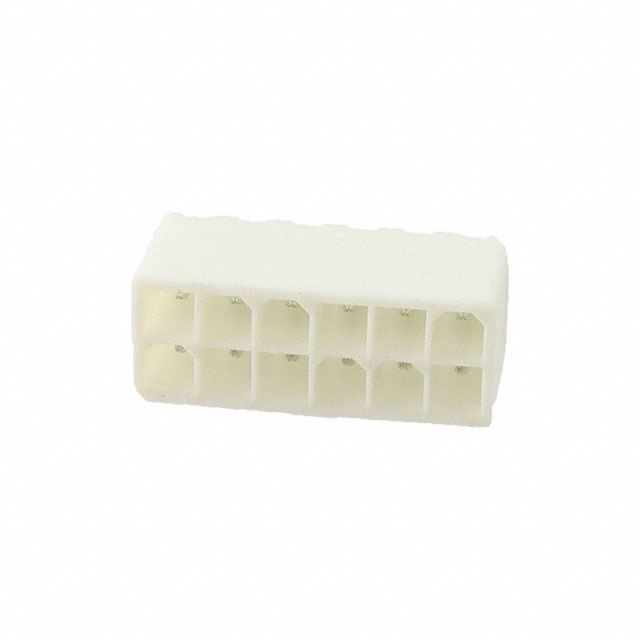

The Amphenol ICC (FCI) part number 10131319-124120PLF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features a 4.2 mm pitch and a dual-row, 12-position header configuration with vertical mounting orientation. The contacts are constructed from copper alloy and finished with a 30-microinch gold plating to ensure reliable conductivity. Rated for 12.5 A current, the component operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhm.

Feature Summary

• Dual-row vertical header design for high-density power distribution
• Gold-plated copper contacts for enhanced corrosion resistance
• High current rating suitable for demanding power applications

Applications

• Industrial control systems requiring robust power connections
• Telecommunications infrastructure equipment
• Server and storage backplane power delivery

Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to confirm contact plating thickness and housing material variations. Ensure compatibility with mating receptacles regarding pin count and row alignment. Confirm that the vertical header style meets the mechanical clearance requirements of the target assembly before finalizing procurement orders.

Selection Notes

Select this component when a 4.2 mm pitch power connector is required for vertical board mounting. The dual-row layout supports higher current capacity compared to single-row alternatives. Verify that the 12-position count aligns with the system's power rail requirements. Ensure the operating environment stays within the specified thermal limits to maintain connection integrity over the product lifecycle.

Part Context

This connector belongs to the Minitek Power4.2 family, which provides standardized solutions for power distribution in electronic assemblies. The series is characterized by its 4.2 mm spacing, offering a balance between current carrying capability and board space efficiency. It serves as a critical interface for delivering stable power to circuit boards in various industrial and commercial electronics.

Replacement Considerations

Direct substitutes must match the 4.2 mm pitch, 12-position count, and dual-row vertical header specifications. Verify that any alternative component offers equivalent current ratings and contact materials. Cross-reference mechanical dimensions to ensure proper fit within the existing enclosure constraints.
