Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

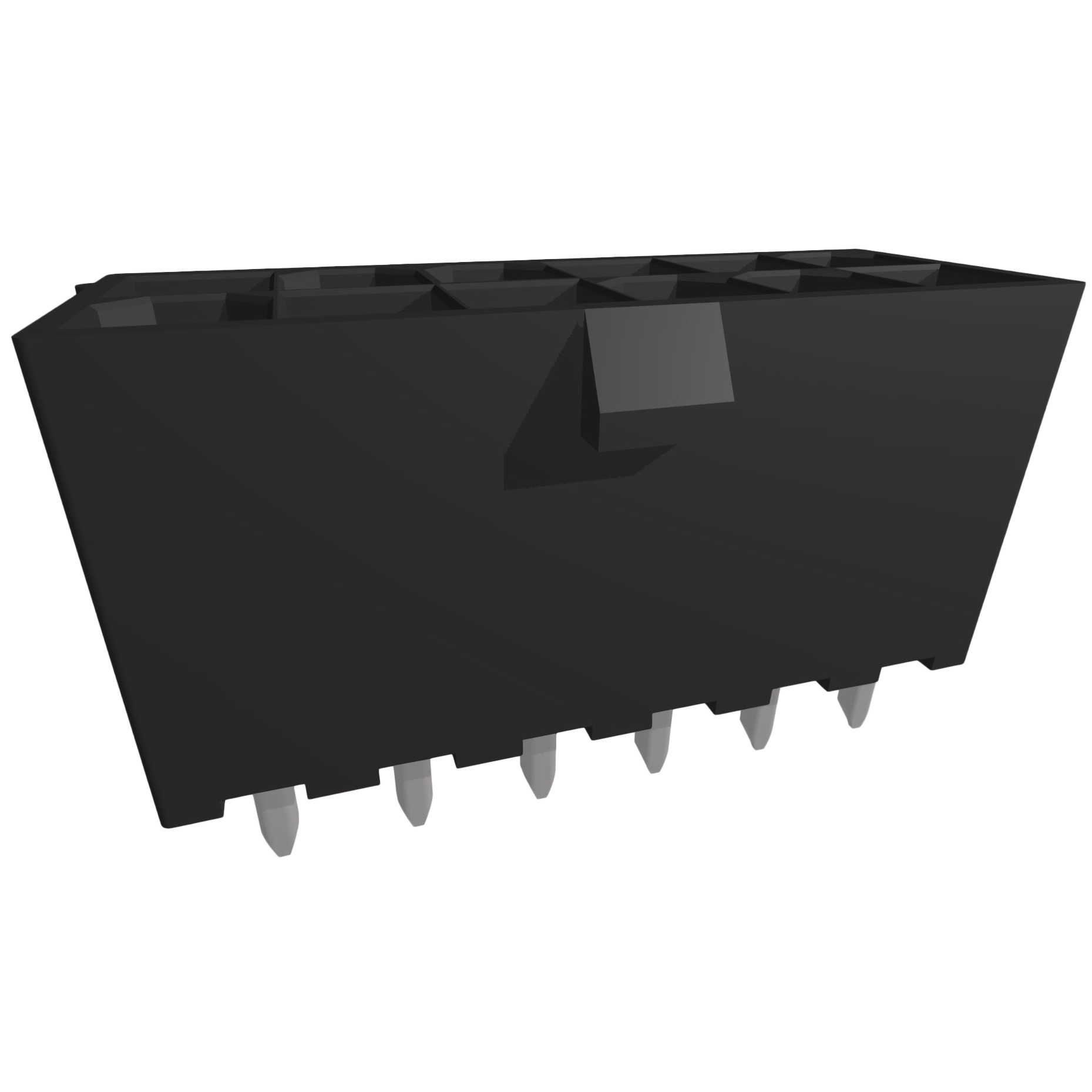

The Amphenol ICC (FCI) part number 10131319-1242200LF is a Minitek Pwr 4.2 High Current power-to-board header connector. It features a 4.2 mm pitch and a dual-row configuration with 24 positions. The contacts are gold-plated copper alloy, rated for 12.5 A current and 600 VAC voltage. Designed for through-hole vertical mounting, the housing is constructed from black liquid crystal polymer (LCP). The unit operates within a temperature range of -40°C to +105°C and maintains an insulation resistance of 1 GOhms.
Feature Summary
- High-current capability supporting up to 12.5 A per contact
- Gold-plated contacts ensure reliable conductivity and corrosion resistance
- Vertical through-hole mounting facilitates direct board integration
- LCP housing provides thermal stability and high insulation resistance
Applications
- Industrial power distribution systems
- Factory automation equipment
- Heavy machinery control units
- Alternative energy generation components
Procurement Notes
Verify the specific ordering suffix and plating requirements against the official datasheet before procurement. Confirm that the manufacturer accepts factory special orders for this component. Ensure compatibility with existing PCB footprint designs and verify current availability status directly with the supplier or authorized distributors.
Selection Notes
Select this connector when high current capacity and robust thermal performance are required in a compact form factor. The 4.2 mm pitch allows for significant spacing between contacts, reducing arcing risks. Verify that the operating environment stays within the specified -40°C to +105°C range and that the LCP material meets flame rating standards for the target application.
Part Context
This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series specializes in high-current power interconnects designed for demanding industrial environments. Amphenol acquired FCI in 2016, continuing the production of these durable connectors under the Amphenol brand portfolio.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult the official Amphenol catalog for cross-reference options or equivalent series connectors with matching pitch and current ratings.
