10131319-14221G0LF

Overview

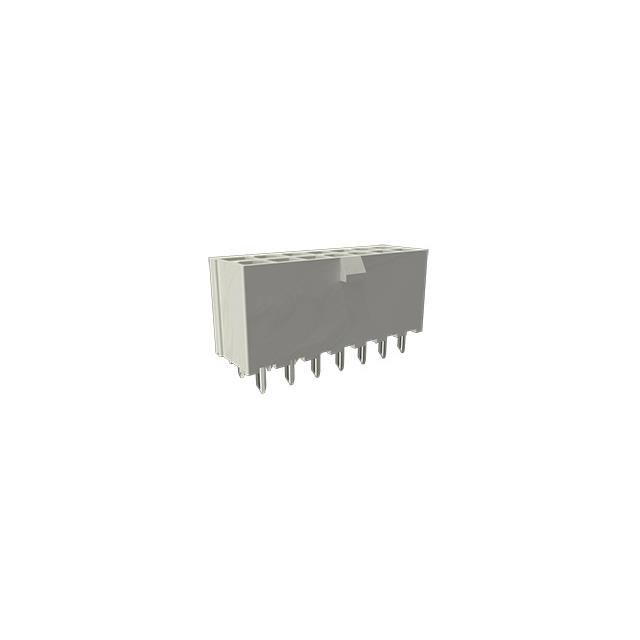

The Amphenol ICC (FCI) 10131319-14221G0LF is a Minitek Power 4.2 series power connector designed for board-to-board applications. It features a vertical header configuration with 14 positions and a 4.2 mm pitch. The contacts are made of copper alloy with a tin plating finish, supporting a current rating of 12.5 A. The housing is constructed from black nylon with UL94 V-0 flammability rating. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 1 GOhms.

Feature Summary

• Vertical through-hole mounting for secure PCB integration
• Tin-plated copper alloy contacts for reliable conductivity
• High-temperature resistant black nylon housing material

Applications

• Industrial control systems requiring high-current connections
• Power distribution units in electronic equipment
• Server and storage infrastructure power interfaces

Procurement Notes

Verify the specific ordering suffix and environmental compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the tin-plated contact finish meets the required soldering and mating conditions for the target application environment. Ensure the vertical header form factor aligns with the mechanical constraints of the assembly design.

Selection Notes

Select this component when a vertical, 14-position power header with a 4.2 mm pitch is required. The 12.5 A current rating and -40°C to +105°C operating range suit demanding industrial environments. Ensure compatibility with mating sockets from the same Minitek Power 4.2 series to maintain electrical and mechanical integrity.

Part Context

This part belongs to the Minitek Power 4.2 family, which provides robust power solutions for space-constrained applications. The series offers various position counts and contact finishes to accommodate different current and corrosion resistance needs within the same mechanical footprint standard.

Replacement Considerations

Compatible substitutes include other 14-position, 4.2 mm pitch vertical headers from the Minitek Power 4.2 series, such as variants with gold plating if enhanced corrosion resistance is needed. Verify that any replacement maintains the same 12.5 A rating and UL94 V-0 housing rating.
