10131319-144110PLF

Overview

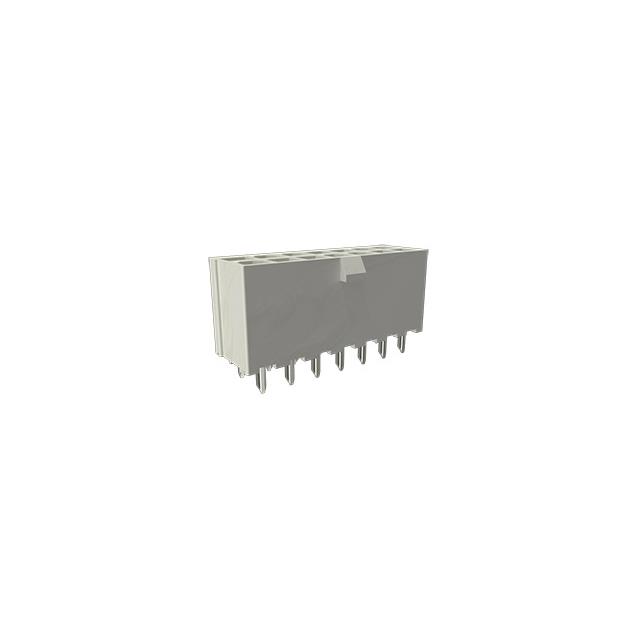

The Amphenol ICC (FCI) part number 10131319-144110PLF is a Minitek Power4.2 Higher Current Connector (HCC) header designed for power-dense applications. It features a 14-position configuration with a 4.2 mm pitch and two rows of contacts. The connector utilizes through-hole vertical termination with gold plating on the contact surfaces. Rated for 12.5 A current and 600 VAC voltage, it operates within a temperature range of -40°C to +105°C. Constructed with copper contacts and a natural nylon 6.6 housing, this component ensures reliable electrical performance in high-current board-to-board or cable-to-board interconnect scenarios.

Feature Summary

• Designed for power-dense applications with higher current carrying capability per contact
• Features gold-plated contacts to ensure reliable conductivity and corrosion resistance
• Utilizes a robust nylon 6.6 insulating material for thermal stability and mechanical strength
• Supports vertical through-hole mounting for secure board integration

Applications

• High-current power distribution systems
• Industrial equipment power interfaces
• Telecommunications infrastructure power supplies
• Data center server power delivery modules

Procurement Notes

Verify the specific suffix PLF against the manufacturer's latest datasheet to confirm lead-free compliance and packaging details. Ensure the ordering quantity matches the factory standard pack size to avoid partial reel issues. Confirm that the vertical orientation and 14-pin count align precisely with the PCB footprint requirements before finalizing the purchase order.

Selection Notes

Select this component when application demands exceed standard connector ratings, specifically requiring 12.5 A per contact capacity. The 4.2 mm pitch provides ample spacing for high-voltage isolation needs up to 600 VAC. Choose the gold-plated variant over tin if long-term reliability in harsh environments or frequent mating cycles is required. Verify that the vertical form factor fits within the available chassis height constraints.

Part Context

This part belongs to the Minitek Pwr 4.2 series, a line of connectors engineered for demanding power delivery tasks. The series emphasizes high current density and thermal management capabilities. As an HCC product, it distinguishes itself from standard signal connectors by optimizing contact geometry and material selection for sustained high-amperage operation without excessive heating.

Replacement Considerations

Direct substitutes must match the 14-position count, 4.2 mm pitch, vertical through-hole style, and gold plating. Cross-referencing with other Minitek Pwr 4.2 variants is necessary to ensure identical mechanical dimensions and electrical ratings. Generic replacements may lack the specific current handling capabilities defined by the HCC designation.
