Product Detailed Parameters
- Description：CONN HEADER VERT 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

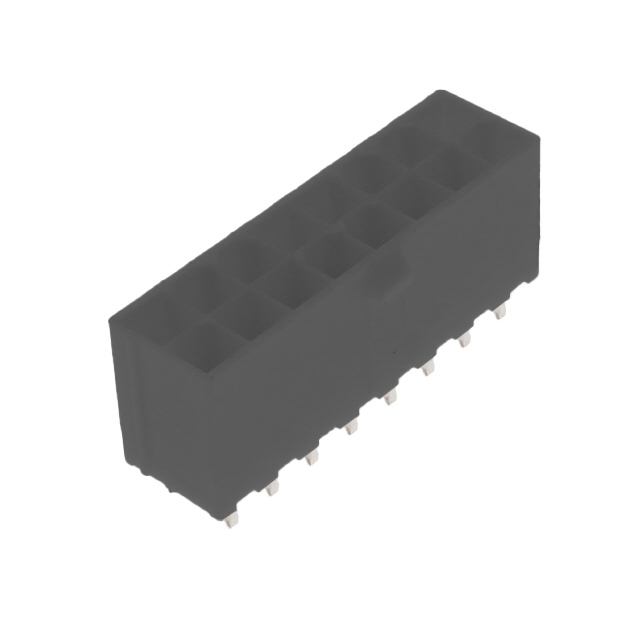

The Amphenol ICC (FCI) part number 10131319-1612100LF is a vertical power header belonging to the MinitekPwr 4.2 series. It features a 16-position configuration with a 4.2 mm contact pitch arranged in two rows. The connector utilizes through-hole termination for secure board mounting and is designed for power distribution applications. It supports a rated current of 12.5 A per contact and operates within a temperature range of -40°C to +105°C. The housing is natural-colored, and the contacts are plated with tin over copper.
Feature Summary
- Vertical through-hole header design for reliable power-to-board connections
- High current capacity of 12.5 A per position with 4.2 mm spacing
- Tin-plated copper contacts ensure stable conductivity and corrosion resistance
Applications
- Power distribution systems in industrial equipment
- Server and storage device internal power interfaces
- Communication infrastructure power supply units
Procurement Notes
Verify component authenticity by cross-referencing the manufacturer's official datasheet and ordering information. Confirm that the specific suffix matches the required pin count and plating specifications. Ensure compatibility with mating receptacles from the same MinitekPwr 4.2 family. Check for any recent product change notices regarding material or dimensional updates before finalizing procurement orders.
Selection Notes
Select this component when a vertical, high-current power interface is required with a 4.2 mm pitch. It is suitable for designs needing through-hole assembly for mechanical robustness. Consider the 12.5 A rating against thermal management requirements. Verify that the natural housing color and tin plating meet the environmental and aesthetic constraints of the target application.
Part Context
This connector is part of the MinitekPwr 4.2 series, which provides high-power density solutions for demanding environments. The series is engineered for durability and signal integrity in power delivery networks. Amphenol ICC (FCI) designs these components to withstand vibration and thermal cycling, ensuring long-term reliability in critical infrastructure and industrial applications.
Replacement Considerations
Public confirmed substitute part numbers: 10131319-1212100LF (12 Position), 10131319-061210RLF (6 Position). These variants share the same 4.2 mm pitch and series characteristics but differ in contact count.
