10131319-16121G0LF

Overview

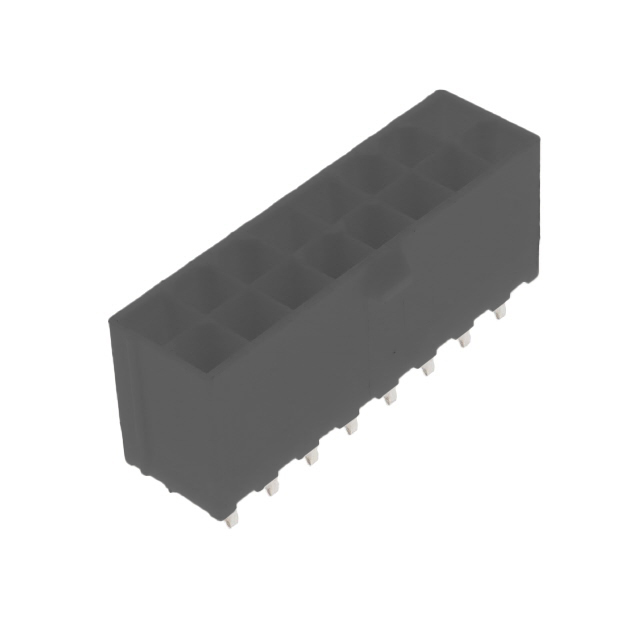

The Amphenol ICC (FCI) part number 10131319-16121G0LF is a Minitek Power 4.2 series through-hole header connector designed for power-to-board applications. It features a vertical orientation with a 4.2 mm pitch and accommodates 16 positions across two rows. The contacts are constructed from copper alloy with a 30-microinch gold plating to ensure reliable conductivity. The housing is made of black polyamide (PA66), rated UL94 V-0 for flammability. It supports a current rating of 12.5 A and operates within a temperature range of -40°C to +105°C, providing an insulation resistance of 1 GOhms.

Feature Summary

• Dual-row vertical header configuration for high-density power distribution
• Gold-plated copper contacts for enhanced corrosion resistance and signal integrity
• Polyamide housing with UL94 V-0 flammability rating for thermal stability

Applications

• Industrial control systems requiring robust power connections
• Telecommunications infrastructure equipment
• High-power consumer electronics assemblies

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations exist within the Minitek Power 4.2 family. Ensure compatibility with mating socket specifications regarding current capacity and thermal limits. Confirm RoHS compliance status and lead times directly with the manufacturer or authorized distributors, as availability may vary by region.

Selection Notes

Select this component when a vertical, dual-row power header with a 4.2 mm pitch is required. The 16-position count suits moderate power bus applications. Verify that the PCB layout accommodates the straight-through hole dimensions and that the operating environment stays within the specified -40°C to +105°C range for optimal performance.

Part Context

This connector belongs to the Minitek Power 4.2 series, a line of high-current board-to-board and power-to-board interconnects. The series is characterized by its 4.2 mm pitch, which allows for higher current handling compared to smaller pitch alternatives. It is widely used in applications demanding reliable power delivery in compact spaces.

Replacement Considerations

Direct replacements must match the 4.2 mm pitch, 16-position count, dual-row vertical format, and gold-plated contact specifications. Cross-referencing with other manufacturers requires verifying mechanical footprint compatibility and electrical ratings.
