Product Detailed Parameters

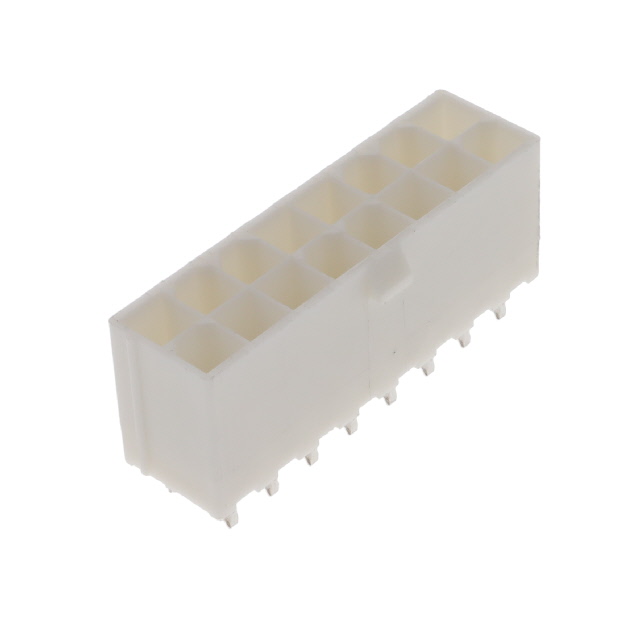

- Description：CONN HEADER VERT 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-1621100LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a 16-position configuration with a 4.20mm pitch, supporting dual rows of male pins. The component utilizes through-hole termination and is rated for 12.5A current and 600VAC voltage. Constructed with copper contacts and a black housing, it operates within a temperature range of -40°C to +105°C.
Feature Summary
- High current capacity suitable for demanding power distribution requirements
- Robust mechanical design with through-hole mounting stability
- Durable contact plating ensuring reliable electrical performance
Applications
- Server and storage system power distribution
- Communication network equipment power interfaces
- Industrial control board power connections
Procurement Notes
Verify the specific ordering suffix and pin count to ensure compatibility with existing PCB layouts. Confirm that the 16-position variant matches the required circuit density. Check RoHS compliance status and lead times as availability may vary due to manufacturing cycles. Ensure the through-hole footprint aligns with assembly capabilities.
Selection Notes
Select this connector when high current handling at 12.5A is required in a compact 4.2mm pitch format. The vertical orientation facilitates direct board stacking or side-entry power delivery. Consider the operating temperature range and insulation resistance specifications for environmental suitability in industrial or data center deployments.
Part Context
This component belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), specializing in high-current power interconnects. The series is widely used in infrastructure equipment requiring robust power delivery. The 10131319 prefix denotes the specific header family within the broader Minitek product line.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with other Minitek Pwr 4.2 variants based on pitch and current ratings before substitution.
