Product Detailed Parameters

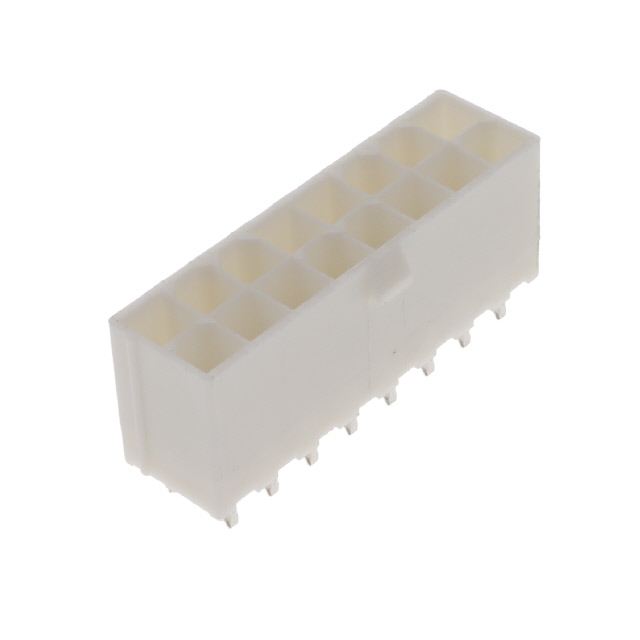

- Description：CONN HEADER VERT 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-16211G0LF is a Minitek Pwr 4.2 series power-to-board header connector. It features a 16-position, two-row vertical through-hole mounting configuration with a 4.2 mm pitch. The contacts are gold-plated copper pins rated for 12.5 A current and 600 VAC/DC voltage. Designed for high-reliability applications, it operates within a temperature range of -40°C to +105°C and utilizes natural-colored insulation.
Feature Summary
- Gold-plated male pin contacts ensure reliable electrical connectivity in demanding environments.
- Vertical two-row header design facilitates efficient board space utilization.
- High current and voltage ratings support robust power distribution requirements.
Applications
- Industrial control systems
- Power supply units
- Telecommunications equipment
Procurement Notes
Verify the specific ordering suffix 'G0' confirms gold plating rather than tin or other finishes. Confirm RoHS compliance status as required by project specifications. Ensure the vertical orientation matches the PCB layout constraints before finalizing procurement orders.
Selection Notes
Select this component when a 16-position vertical power header is required. The 4.2 mm pitch accommodates higher current loads compared to smaller pitches. Verify that the 600V rating meets the system's electrical isolation needs.
Part Context
This connector belongs to the Minitek Pwr 4.2 family, designed for high-current power delivery. It serves as a standard interface between power sources and printed circuit boards in various electronic assemblies requiring durable connections.
Replacement Considerations
Compatible substitutes include other 16-position, 4.2mm pitch headers from the same manufacturer series. Ensure replacement parts maintain identical row count, contact material, and mounting orientation for mechanical compatibility.
FAQ
What is the contact material finish?
The contacts feature a gold plating finish to enhance conductivity and corrosion resistance.
Is this connector lead-free?
Yes, the component is lead-free and RoHS compliant according to manufacturer documentation.
