Product Detailed Parameters
- Description：CONN HEADER VERT
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR)
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Pick and Place
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

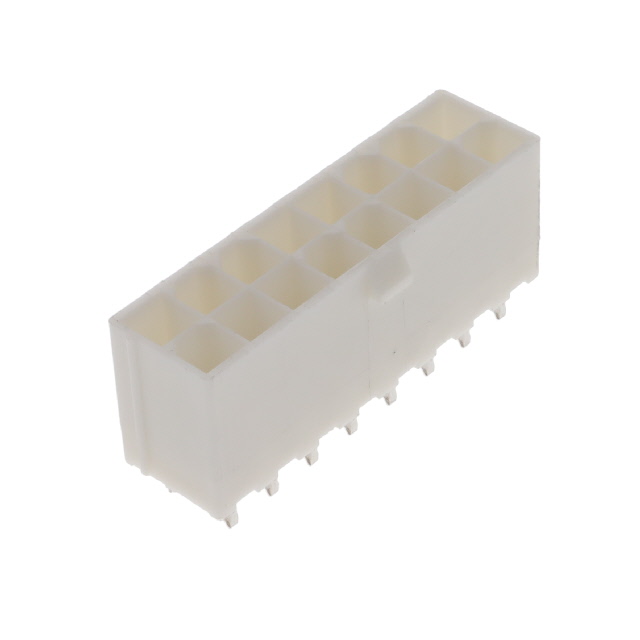

The Amphenol ICC (FCI) part number 10131319-162120RLF is a Minitek Power4.2 series power connector header designed for through-hole vertical mounting. It features a 16-position, dual-row configuration with a 4.2mm pitch. The contacts are constructed from copper alloy and finished with gold plating on the mating interface to ensure reliable conductivity. This component is rated for 12.5A current and operates within a temperature range of -40°C to +105°C. It utilizes natural-colored insulation material and is supplied in reel packaging.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Gold-plated contact surfaces for enhanced corrosion resistance and signal integrity
- Robust copper alloy construction supporting 12.5A current ratings
Applications
- Industrial control systems requiring durable power connections
- Telecommunications infrastructure equipment
- Commercial electronic devices needing reliable board-to-board power interfaces
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and pin count, as variations exist within the 10131319 series. Confirm RoHS compliance status prior to integration, as some variants may differ. Check manufacturer documentation for updated lifecycle status to ensure long-term availability for production cycles.
Selection Notes
Select this component when a vertical, dual-row power header with a 4.2mm pitch is required. Ensure the application environment stays within the specified -40°C to +105°C operating range. Verify that the PCB layout accommodates the through-hole footprint and that the 12.5A current rating meets the circuit demands.
Part Context
This connector belongs to the Minitek Power4.2 family, engineered for robust power delivery in compact spaces. The series supports various position counts and contact finishes to suit different electrical requirements. It is widely used in applications demanding high reliability and stable performance under thermal stress.
Replacement Considerations
Direct substitutes include other 16-position, 4.2mm pitch headers from compatible manufacturers. Verify mechanical dimensions, current ratings, and contact finish compatibility before substitution.
