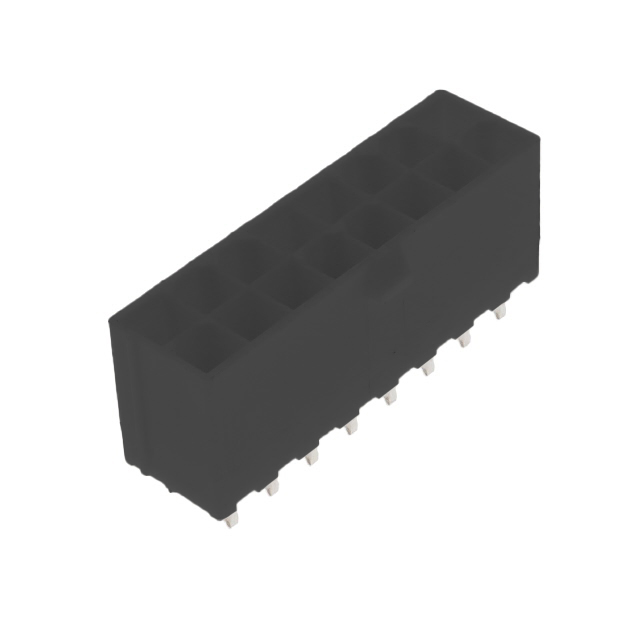

10131319-1622100LF

Description：CONN HEADER VERT 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:6f20ef5ff58b Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 16POS 4.2MM
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-1622100LF

Overview

The Amphenol ICC (FCI) 10131319-1622100LF is a Minitek Power4.2HCC double-row vertical header designed for power-to-board applications. It features 16 positions with a 4.2 mm pitch and utilizes gold-plated copper contacts rated for 12.5 A current. The component operates within a temperature range of -40°C to +105°C, offering high insulation resistance and reliable electrical performance in demanding environments.

Feature Summary

Double-row vertical header configuration for compact power distribution
Gold-plated copper contacts ensure reliable conductivity and corrosion resistance
High current rating supports robust power delivery requirements

Applications

Power supply modules
Industrial control systems
Data communication equipment

Procurement Notes

Verify the specific suffix against official Amphenol documentation to confirm contact plating and material specifications. Ensure compatibility with mating receptacles regarding pin count and row configuration. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration into regulated assemblies.

Selection Notes

Select this connector when a 4.2 mm pitch vertical header is required for high-current power routing. Evaluate the 16-position layout against board space constraints. Verify that the operating temperature range meets the environmental conditions of the target application.

Part Context

This component belongs to the Minitek Power4.2 series by Amphenol ICC (FCI). The series provides standardized power-to-board solutions characterized by high density and durability. It serves as a critical interconnect element in modern electronic systems requiring efficient power management.
