Product Detailed Parameters

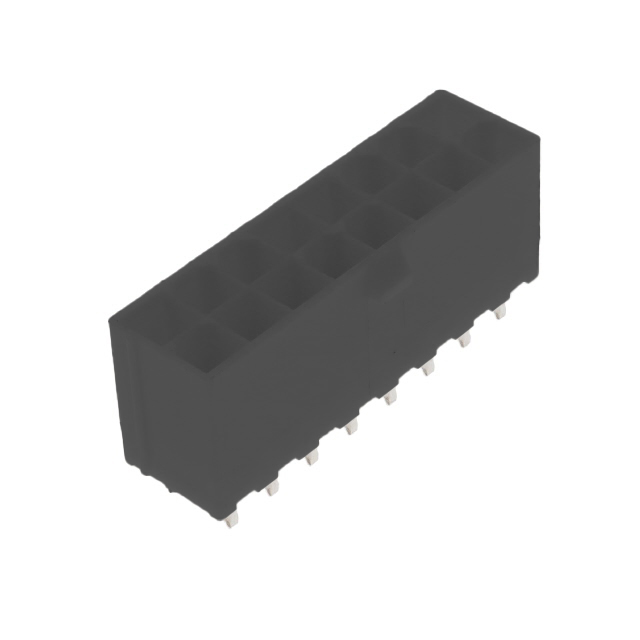

- Description：CONN HEADER VERT 16POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-16221G0LF is a Minitek Power4.2 series header connector designed for power-to-board applications. It features a 4.2 mm pitch and accommodates 16 positions arranged in two rows. The component utilizes male pin contacts with gold plating, housed in a black liquid crystal polymer (LCP) shell. Rated for 12.5 A current and 600 VAC voltage, it supports an operating temperature range from -40°C to +105°C and offers 1 GOhm insulation resistance.
Feature Summary
- High-current power delivery capability suitable for demanding electronic environments
- Dual-row configuration providing dense contact arrangement within a standard pitch
- Robust thermal stability ensuring reliable operation across wide temperature extremes
Applications
- Industrial control systems requiring robust power distribution
- Telecommunications infrastructure equipment
- Automotive electronics assemblies
Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm exact pin count, row configuration, and termination style. Ensure the selected variant matches the required mechanical height and mating interface specifications for the target PCB layout before finalizing procurement orders.
Selection Notes
Select this connector when a 4.2 mm pitch is required for high-current power routing. Evaluate the dual-row header format against single-row alternatives based on available board space. Confirm that the LCP housing material and gold contact plating meet the environmental and conductivity requirements of the application.
Part Context
This component belongs to the Minitek Power4.2 family, which provides standardized solutions for power interconnects. The series is characterized by its 4.2 mm spacing, offering a balance between current capacity and board density. It serves as a key element in Amphenol's portfolio for industrial and commercial power distribution needs.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 16-position dual-row configuration, and vertical through-hole termination. Verify compatibility with existing PCB footprints and mating cable or wire harness interfaces before implementing any alternative part numbers.
