Product Detailed Parameters

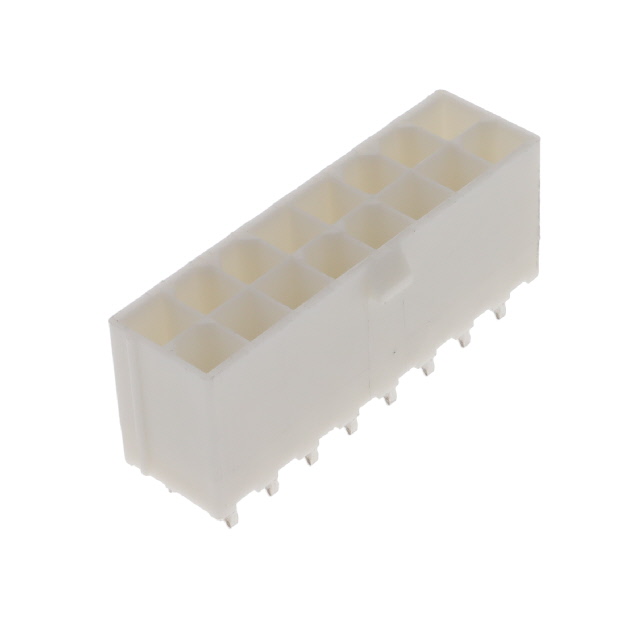

- Description：10131319-164110PLF-MTK 4.2 16P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-164110PLF is a Minitek Power4.2 High Current Header connector designed for power-to-the-board applications. It features a 16-position configuration with a 4.2 mm pitch and operates in a dual-row vertical orientation. The contacts are constructed from copper alloy with a 30-microinch gold plating to ensure reliable conductivity. Rated for 12.5 A current, the component supports an operating temperature range of -40°C to +105°C and utilizes polyamide insulation rated UL94 V-0.
Feature Summary
- High-current capability optimized for efficient power distribution in compact board layouts
- Dual-row vertical header design facilitates dense power routing with standardized mounting
- Gold-plated copper contacts provide durable electrical performance and corrosion resistance
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure power modules
- Industrial control system power interfaces
Procurement Notes
Verify the specific ordering suffix PLF against official Amphenol documentation to confirm lead-free compliance and packaging details. Confirm that the 16-position variant matches the required circuit density. Request current factory availability directly from authorized distributors as standard stock levels may vary. Ensure the vertical through-hole mounting style aligns with the target PCB assembly process requirements.
Selection Notes
Select this component when high current carrying capacity is required within a limited board area. The 4.2 mm pitch allows for robust contact spacing suitable for power lines. Verify that the dual-row configuration fits the available footprint constraints. Ensure the operating temperature range meets the environmental conditions of the final assembly application.
Part Context
This connector belongs to the Minitek Pwr 4.2 series by Amphenol FCI, a line specialized for high-current power delivery. The series addresses the demand for compact, reliable power connections in datacom and telecom sectors. It complements other Minitek variants by offering specific pitch and row configurations tailored for diverse board-level power architectures.
Replacement Considerations
Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains the 4.2 mm pitch, 16-position count, and dual-row vertical form factor to ensure mechanical compatibility.
