10131319-16411GPLF

Overview

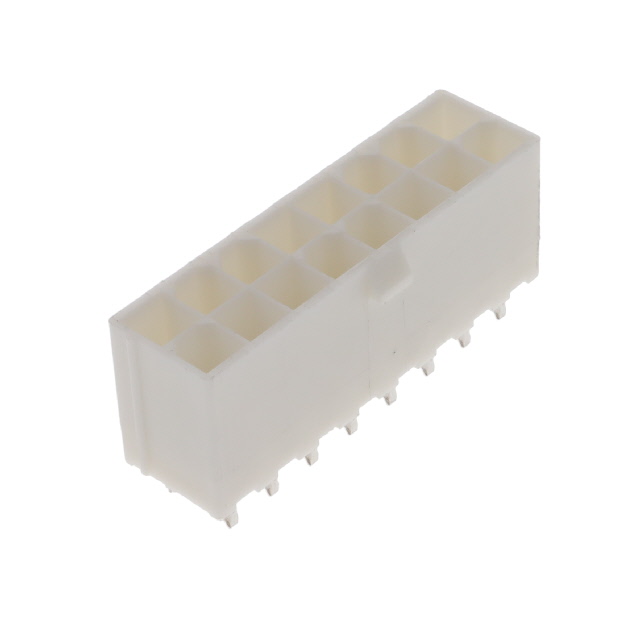

The Amphenol ICC (FCI) 10131319-16411GPLF is a Minitek Power 4.2HCC double-row vertical header designed for power-to-board applications. It features a 4.2 mm pitch and offers 16 positions with gold-plated copper contacts. Rated for 12.5 A current, it operates within a temperature range of -40°C to +105°C. The connector utilizes a natural-colored insulator and provides high insulation resistance.

Feature Summary

• Double-row vertical header configuration for compact power distribution
• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• High current rating supports demanding power delivery requirements

Applications

• Power supply modules
• Industrial control systems
• Telecommunications equipment

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition. Ensure the selected variant matches the required pin count and row configuration for the target PCB layout. Confirm compliance with RoHS directives and check for any factory-specific order requirements before finalizing procurement.

Selection Notes

Select this component when a high-current vertical interconnect is required in space-constrained designs. The 4.2 mm pitch allows for robust trace spacing while maintaining a low profile. Verify that the 12.5 A rating aligns with the system's thermal management capabilities and peak load demands.

Part Context

This part belongs to the Minitek Pwr 4.2 series, a line of power connectors engineered for durability and signal integrity. Amphenol FCI integrates these solutions into broader connectivity portfolios for industrial and communication markets, emphasizing reliable performance under varying environmental conditions.

Replacement Considerations

Consult official substitution lists for compatible variants within the Minitek Power 4.2 family. Verify mechanical footprint compatibility and electrical ratings before replacing.
