Product Detailed Parameters

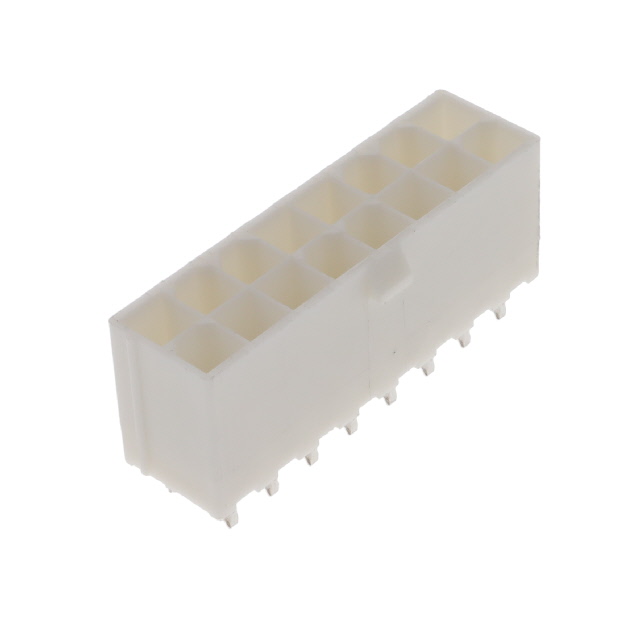

- Description：10131319-164120PLF-MTK 4.2 16P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-164120PLF is a Minitek Power 4.2HCC dual-row vertical header connector designed for power-to-board applications. It features a 4.2 mm pitch and accommodates 16 positions across two rows. The contacts are constructed from copper with gold plating, ensuring reliable conductivity. Rated for 12.5 A current, the connector operates within a temperature range of -40°C to +105°C. It utilizes a black housing and offers an insulation resistance of 1 GOhms.
Feature Summary
- Dual-row vertical header configuration for high-density power distribution
- Gold-plated copper contacts ensure stable electrical performance
- Robust thermal stability supporting operation up to +105°C
Applications
- Power distribution in server infrastructure
- Storage device internal connections
- Communication equipment power supply interfaces
Procurement Notes
Verify component authenticity through authorized Amphenol channels or certified distributors. Confirm that the specific suffix PLF indicates lead-free compliance as per RoHS standards. Request official datasheets to validate mechanical dimensions and mating partner compatibility before integration into production designs.
Selection Notes
Select this component when a dual-row vertical header with a 4.2 mm pitch is required for power delivery. Ensure the design supports a 12.5 A current rating per contact. Verify that the PCB layout accommodates the specific footprint for the 16-position configuration and that the operating environment remains within the specified temperature limits.
Part Context
This connector belongs to the MinitekPwr 4.2 series by Amphenol FCI, specialized for power-to-board interconnects. The series provides solutions for Wire-to-Wire, Wire-to-Board, and Wire-to-Panel applications. It is engineered for durability in demanding environments, offering low profile and secure mounting characteristics suitable for industrial and data center hardware.
Replacement Considerations
Consult official substitution lists for equivalent Minitek Power 4.2 headers. Verify pin count, pitch, and row configuration match exactly. Ensure material specifications and current ratings remain consistent to maintain system safety and performance integrity.
