10131319-18111G0LF

Overview

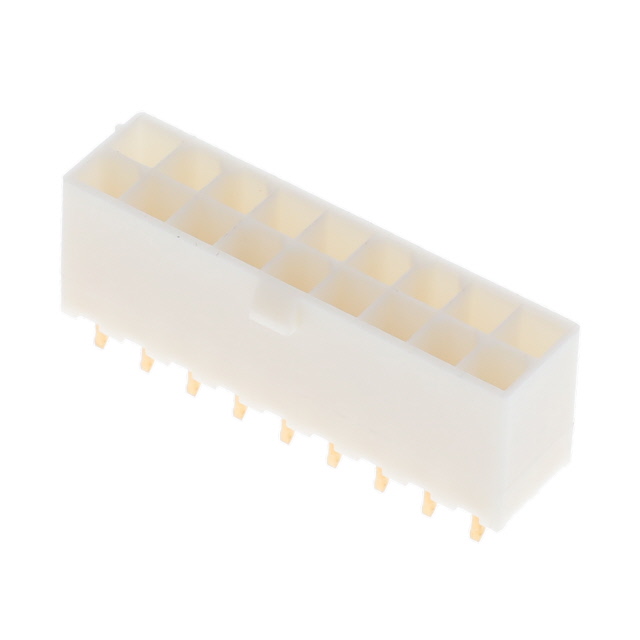

The Amphenol ICC (FCI) 10131319-18111G0LF is a Minitek Power4.2 High Current header connector designed for power-to-the-board applications. It features an 18-position, dual-row configuration with a 4.2 mm pitch. The component utilizes through-hole vertical mounting and copper contacts plated with gold finish. It operates within a temperature range of -40°C to +105°C and supports a current rating of 12.5 A per contact.

Feature Summary

• Dual-row high-current design for efficient power distribution
• Gold-plated copper contacts ensure reliable conductivity
• Vertical through-hole mounting for PCB integration

Applications

• Industrial equipment power distribution
• Telecommunications infrastructure systems
• Server and storage backplane connections

Procurement Notes

Verify the complete part number including suffixes to confirm plating thickness and material specifications. Ensure compatibility with mating receptacles from the same Minitek Power4.2 series. Confirm that the selected variant meets specific environmental and thermal requirements for the target application before finalizing procurement orders.

Selection Notes

Select this connector when high current capacity and robust mechanical stability are required in space-constrained designs. The 4.2 mm pitch allows for substantial trace routing on the PCB. Verify that the board layout accommodates the dual-row footprint and that the through-hole process aligns with manufacturing capabilities for optimal solder joint integrity.

Part Context

This component belongs to the Minitek Power4.2 series, engineered for demanding power delivery scenarios. The series offers various position counts and row configurations to suit different board architectures. The 18-position variant provides a balanced solution for moderate power density requirements while maintaining standard industrial interface dimensions.

Replacement Considerations

Direct substitutes include other 18-position, 4.2mm pitch headers from the Minitek Power4.2 family, such as 10131319-18111G0LF variants with differing plating options. Cross-brand replacements require verification of pitch, current rating, and mechanical locking features to ensure functional equivalence.
