Product Detailed Parameters

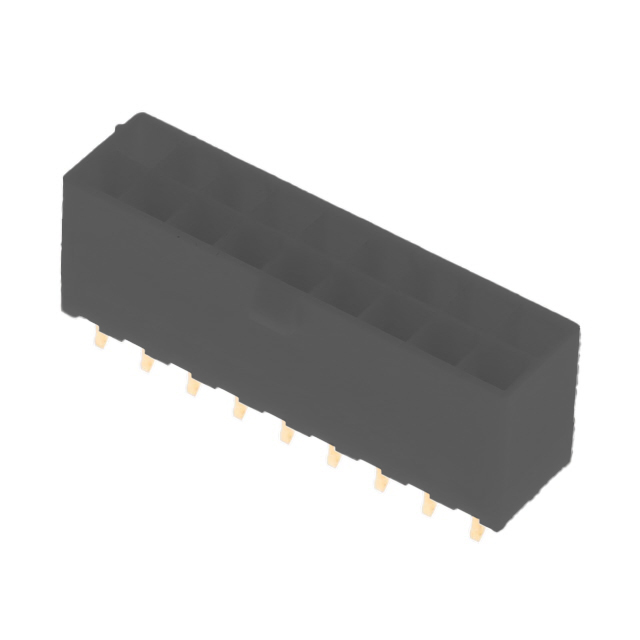

- Description：CONN HEADER VERT 18POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-1812100LF is a Minitek Power4.2 series power connector designed for board-to-board applications. It features an 18-position vertical header with a 4.2 mm pitch and dual-row configuration. The connector supports a current rating of 12.5 A per contact and operates within a temperature range of -40°C to +105°C. Constructed with copper contacts featuring gold plating, it ensures reliable electrical performance in high-power environments.
Feature Summary
- Vertical mounting orientation for direct PCB integration
- Dual-row design maximizing contact density
- Gold-plated copper contacts for corrosion resistance
- High current capacity suitable for power distribution
Applications
- Server and storage equipment power distribution
- Industrial automation control boards
- Telecommunications infrastructure hardware
- Data center power supply units
Procurement Notes
Verify the specific suffix 'LF' indicates lead-free compliance and confirm the exact pin count matches the 18-position requirement. Ensure the vertical header style aligns with the target PCB layout constraints. Cross-reference the manufacturer's latest datasheet to confirm availability status and any recent engineering changes or obsolescence notices before finalizing procurement orders.
Selection Notes
Select this component when a high-current, low-profile vertical connection is required for power delivery. The 4.2 mm pitch allows for robust spacing between contacts, reducing arcing risks. Verify that the mating receptacle or cable assembly supports the dual-row configuration and matches the 12.5 A current rating to ensure system reliability under load conditions.
Part Context
This part belongs to the Minitek Power4.2 family, a specialized line of power connectors from Amphenol FCI. The series is engineered for demanding industrial and data communication applications requiring durable, high-current connections. The 10131319 prefix identifies the specific housing and contact arrangement within this broader product ecosystem.
Replacement Considerations
Direct substitutes include other 18-position, 4.2mm pitch vertical headers from the same Minitek Power4.2 series, such as 10131319-181110RLF. Always verify mechanical dimensions and contact material specifications before substituting with components from different manufacturers.
