Product Detailed Parameters
- Description：CONN HEADER VERT 18POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

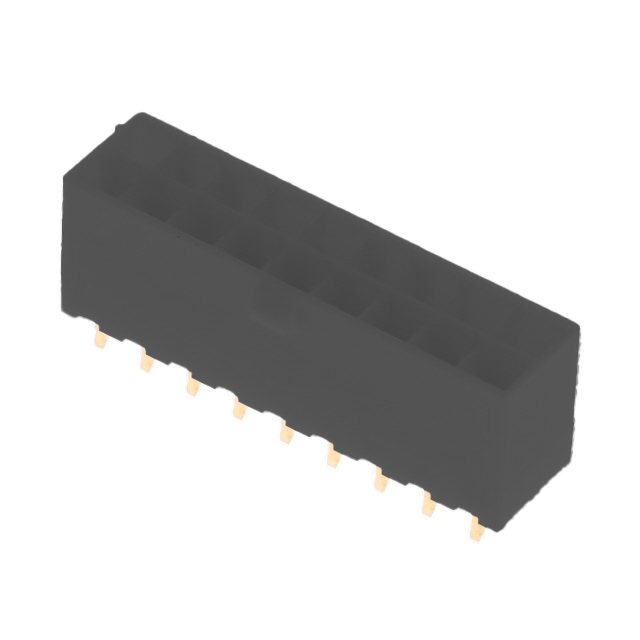

The Amphenol ICC (FCI) 10131319-18121G0LF is a Minitek Power4.2 series power-to-board header connector featuring an 18-position, double-row vertical configuration with a 4.2 mm pitch. It utilizes copper contacts plated with 30-micron gold for reliable conductivity and corrosion resistance. The housing is black UL94 V-0 rated plastic, supporting a maximum operating temperature of +105°C and a minimum of -40°C. Designed for through-hole mounting, this component provides robust electrical connections in compact PCB layouts.
Feature Summary
- Double-row vertical header design for high-density power distribution
- Gold-plated copper contacts ensure stable signal integrity and durability
- UL94 V-0 flammability rating for enhanced safety compliance
Applications
- Compact PCB repair and replacement modules
- Industrial control board power interfaces
- Embedded system power distribution networks
Procurement Notes
Verify the specific ordering suffix to confirm contact plating thickness and housing color variations within the Minitek Power4.2 family. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to procurement. Ensure compatibility with existing PCB footprints and mating connectors before finalizing orders.
Selection Notes
Select this part for applications requiring a 4.2 mm pitch vertical power connection with high reliability. The 18-position count suits moderate current requirements where space efficiency is critical. Verify that the 30-micron gold plating meets environmental exposure standards for the intended operational lifespan.
Part Context
This component belongs to the Minitek Power4.2 series by Amphenol FCI, designed for power-to-board applications. It complements other variants in the lineup differing primarily in position count, row configuration, and plating specifications. The series emphasizes compact form factors suitable for modern electronic assemblies.
Replacement Considerations
Direct substitutes include other 18-position vertical headers from the same Minitek Power4.2 series with matching 4.2 mm pitch. Verify identical mechanical dimensions and pinout configurations when considering alternative manufacturers or different suffixes within the same product line.
