10131319-1821100LF

Overview

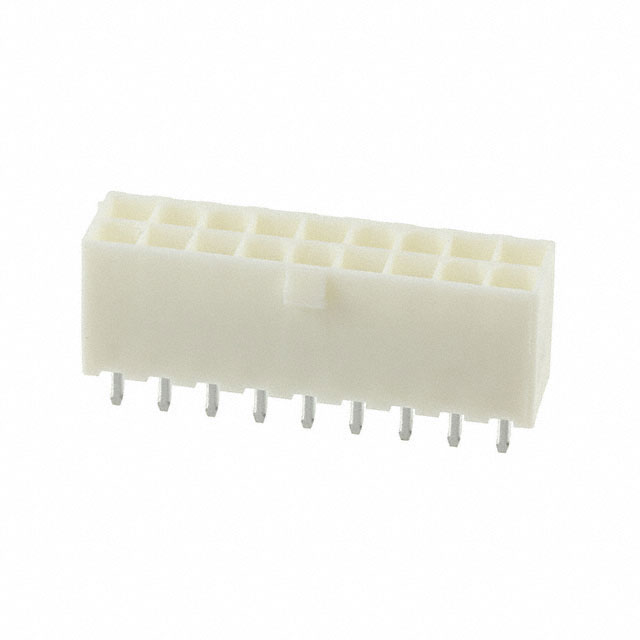

The Amphenol ICC (FCI) part number 10131319-1821100LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features an 18-position configuration with a 4.2 mm pitch and dual-row arrangement. The connector utilizes copper alloy contacts finished with tin plating to ensure reliable conductivity. Rated for 12.5 A current and 600 VAC voltage, it operates within a temperature range of -40°C to +105°C. The housing is constructed from polyamide (PA66) or Nylon 6/6, providing UL94 V-0 flammability rating. This vertical through-hole component is intended for robust industrial interconnect systems requiring high current capacity.

Feature Summary

• High current carrying capability suitable for demanding power distribution environments
• Dual-row header design maximizing contact density on the board
• Robust polyamide insulation material ensuring stability under thermal stress

Applications

• Industrial automation equipment power interfaces
• Factory automation control systems
• Heavy machinery electrical connections

Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm exact pin count, row configuration, and termination style. Ensure compatibility with mating receptacles within the Minitek Pwr 4.2 series. Confirm that the tin-plated contacts meet the environmental requirements for the target application before finalizing procurement orders.

Selection Notes

Select this component when a 4.2 mm pitch high-current header is required for vertical mounting. The 18-position count fits specific circuit layouts needing multiple power lines. Verify that the 12.5 A per contact rating aligns with the system's electrical load. Consider the operating temperature range and flammability class for safety compliance in enclosed industrial enclosures.

Part Context

This connector belongs to the Minitek Pwr 4.2 series by Amphenol ICC (FCI), formerly Framatome Connectors International. The series specializes in high-current power solutions for industrial and infrastructure applications. These connectors are engineered to withstand harsh conditions including vibration and extreme temperatures, supporting sectors like energy generation, transportation, and smart manufacturing.

Replacement Considerations

Direct substitutes include other variants within the Minitek Pwr 4.2 family sharing the same 4.2 mm pitch and dual-row header format. Cross-referencing with Amphenol's official replacement guide is necessary to match pin counts and mechanical dimensions precisely.
