Product Detailed Parameters
- Description：CONN HEADER VERT 18POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

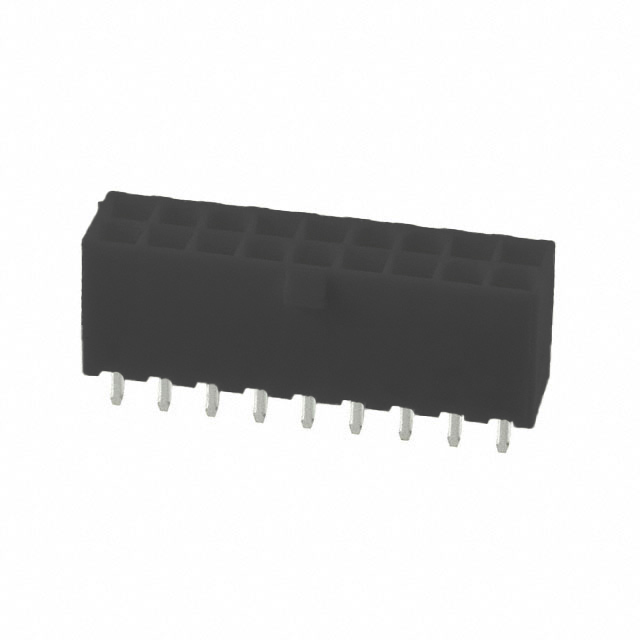

The 10131319-1822100LF is a rectangular connector header manufactured by Amphenol ICC (FCI). It features 18 positions with a 4.20mm pitch and is designed for through-hole vertical mounting. The component belongs to the Minitek Pwr 4.2 series, utilizing tin-plated contacts on a copper alloy base. Rated for 12.5A current, it operates within a temperature range of -40°C to +105°C. The housing is natural-colored thermoplastic, ensuring UL94 V-0 flammability compliance.
Feature Summary
- Supports high-current power delivery up to 12.5A per contact
- Vertical through-hole termination for reliable PCB integration
- Tin-plated contacts ensure corrosion resistance and conductivity
Applications
- Power distribution in industrial equipment
- Server and storage system backplanes
- Telecommunications infrastructure power modules
Procurement Notes
Verify the specific suffix '1822100LF' against official Amphenol documentation to confirm pin count and plating specifications. Ensure compatibility with mating receptacles from the same Minitek Pwr 4.2 family. Confirm RoHS compliance status via the latest datasheet before procurement.
Selection Notes
Select this component when a 4.2mm pitch is required for high-current applications. Verify that the 18-position configuration matches the circuit design. Ensure the vertical orientation fits the mechanical constraints of the assembly. Check thermal requirements against the +105°C maximum operating limit.
Part Context
This part belongs to the Minitek Pwr 4.2 series, designed for robust power-to-board connections. It complements other headers and receptacles within the same pitch family. The series supports various position counts and termination styles for flexible system design.
Replacement Considerations
Direct substitutes must match the 4.2mm pitch, 18 positions, and vertical through-hole format. Verify identical current ratings and flammability classifications. Cross-reference mating interface dimensions to ensure mechanical compatibility.
