10131319-184110PLF

Overview

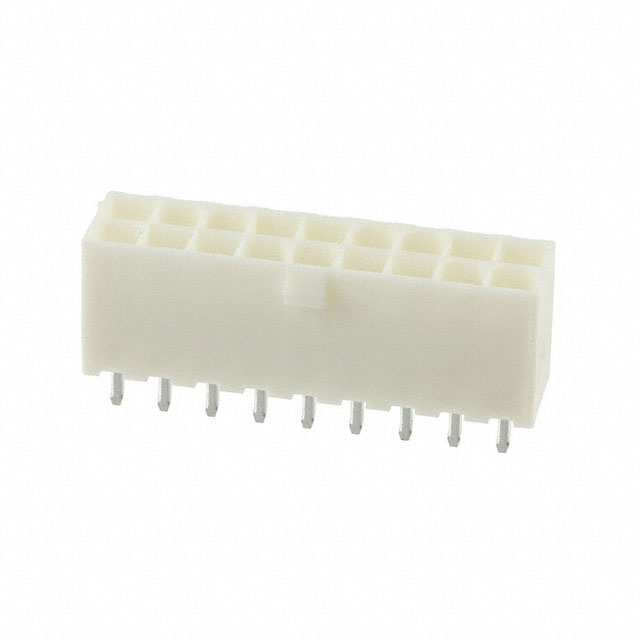

The Amphenol ICC (FCI) part number 10131319-184110PLF is a Minitek Power 4.2 series power-to-board header connector. It features an 18-position configuration with a 4.2 mm pitch and dual-row arrangement. The component utilizes male pin contacts made of copper, finished with a tin plating for reliable conductivity. Designed for through-hole right-angle mounting, it supports a maximum operating temperature of +105°C and a minimum of -40°C. The housing is constructed from black nylon 6.6, providing UL94 V-0 flammability rating. Rated for 12.5 A current and 600 VAC voltage, this connector ensures stable electrical performance in demanding industrial environments.

Feature Summary

• Dual-row power-to-board architecture designed for high-current applications
• Right-angle through-hole mounting for efficient PCB space utilization
• Robust nylon 6.6 insulation with UL94 V-0 flame retardancy
• Tin-plated copper contacts ensuring durable solder joint integrity

Applications

• Industrial control systems requiring robust power distribution
• Server and storage backplanes needing high-density power connections
• Telecommunications infrastructure equipment
• Automotive electronics and heavy-duty machinery interfaces

Procurement Notes

Verify the specific ordering suffix to confirm contact plating and packaging type, as variations exist within the Minitek Power 4.2 family. Ensure compatibility with mating receptacles regarding row spacing and pin configuration. Confirm that the right-angle orientation aligns with the mechanical constraints of the target assembly. Cross-reference the manufacturer's latest datasheet for any recent design changes or obsolescence notices before finalizing procurement orders.

Selection Notes

Select this component when a high-current, low-profile power connection is required on a printed circuit board. The 4.2 mm pitch allows for significant current carrying capacity while maintaining a compact form factor. Consider the right-angle footprint for vertical clearance limitations. Evaluate the thermal environment to ensure operation remains within the specified -40°C to +105°C range. Verify that the tin plating meets the corrosion resistance requirements of the application environment compared to gold alternatives.

Part Context

This connector belongs to the Minitek Power 4.2 series by Amphenol ICC (FCI), a line specialized for power delivery in dense electronic assemblies. The series offers various position counts and mounting styles to accommodate diverse board layouts. As a power-to-board solution, it bridges the gap between power supplies and main logic boards, ensuring stable energy transfer in critical infrastructure and computing hardware.

Replacement Considerations

Direct substitutes must match the 4.2 mm pitch, 18-position count, and dual-row configuration. Verify that alternative headers maintain the same right-angle through-hole mounting style and current rating of 12.5 A. Check for identical housing material properties and flammability ratings to ensure mechanical and safety compliance.
