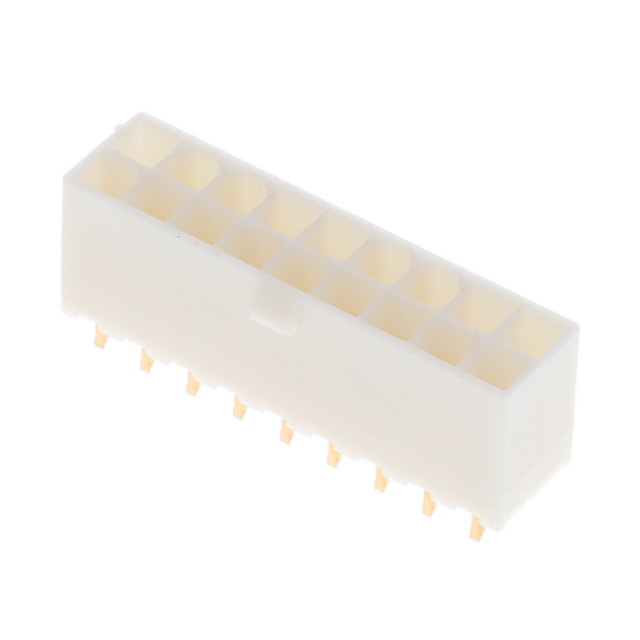

10131319-18411GPLF

$5.27

Description：10131319-18411GPLF-MTK 4.2 18P D
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:2d2aed348376 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10131319-18411GPLF-MTK 4.2 18P D
Series：Minitek® Pwr 4.2 High Current
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.165" (4.20mm)
Number of Positions：18
Number of Rows：2
Row Spacing - Mating：0.165" (4.20mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.138" (3.50mm)
Overall Contact Length：-
Insulation Height：0.504" (12.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Polyamide (PA66), Nylon 6/6
Features：Board Lock, Glow Wire Compliant
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10131319-18411GPLF

Overview

The Amphenol ICC (FCI) part number 10131319-18411GPLF is a Minitek Power4.2HCC DR VTH HDR connector designed for power-to-board applications. It features an 18-position, dual-row header configuration with a 4.2 mm pitch. The contacts are gold-plated male pins, providing reliable electrical connectivity. This component supports a voltage rating of 600VAC/DC and accommodates varying current ratings depending on the wire gauge utilized in the assembly.

Feature Summary

Dual-row header design for high-density power distribution
Gold-plated contact finish for enhanced conductivity and corrosion resistance
Vertical through-hole mounting orientation for secure board attachment

Applications

Server and storage equipment power distribution
Communication infrastructure systems
Industrial control panel interconnections

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required housing colors and termination styles. Confirm that the selected variant meets the necessary UL recognition standards for your target application region. Cross-reference the manufacturer's latest documentation to validate pinout configurations and mechanical dimensions before finalizing procurement orders.

Selection Notes

Select this component when a robust, high-current power connection is required between cables and printed circuit boards. The 4.2 mm pitch allows for substantial conductor sizes, making it suitable for significant power loads. Ensure the mating cable assembly matches the specified contact type and insulation requirements for optimal performance.

Part Context

This connector belongs to the Minitek Power4.2 series, a product line from Amphenol FCI focused on efficient power delivery solutions. The series is engineered for durability and ease of assembly in demanding electronic environments. It represents a specialized solution within the broader portfolio of power-to-board interconnects offered by the manufacturer.
