Product Detailed Parameters

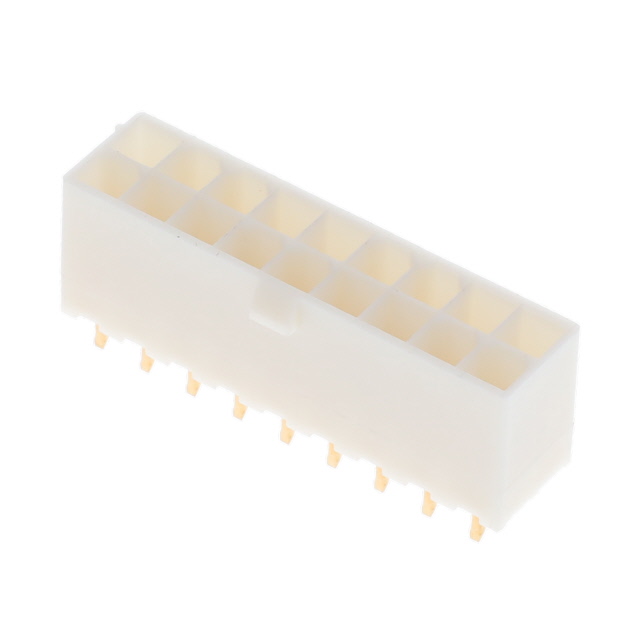

- Description：10131319-1841200LF-MTK 4.2 DR 18
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10131319-1841200LF is a Minitek Power4.2 series header designed for power-to-board applications. It features a 4.20mm pitch with 18 positions arranged in a dual-row configuration. The connector utilizes male pin contacts made of copper, terminated via through-hole mounting at a vertical angle. This component supports high current ratings and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row vertical header design for board-to-board power distribution
- Through-hole termination ensures secure mechanical attachment
- Copper contact material provides reliable electrical conductivity
Applications
- Industrial equipment power distribution
- Server and storage system interconnects
- Telecommunications infrastructure power modules
Procurement Notes
Verify the specific ordering suffix and plating requirements against the official datasheet before procurement. Confirm availability status directly with the manufacturer or authorized distributors, as supply chain conditions may vary. Ensure the selected variant matches the required contact finish and housing color specifications for the intended application environment.
Selection Notes
Select this component when a 4.20mm pitch dual-row header is required for high-current power delivery. Verify that the 18-position count aligns with the circuit design. Ensure the PCB layout accommodates the vertical through-hole footprint and that the operating temperature range meets the environmental demands of the target system.
Part Context
This part belongs to the Minitek Power4.2 family, a line of robust power connectors engineered for demanding environments. The series is characterized by its wide 4.20mm spacing, which facilitates higher current handling capabilities compared to standard signal connectors. It is widely utilized in industrial and data communication sectors requiring reliable power transmission.
Replacement Considerations
Cross-reference with other 18-position, 4.20mm pitch dual-row headers from the same manufacturer. Verify compatibility regarding housing dimensions, terminal geometry, and current rating before substituting.
