Product Detailed Parameters

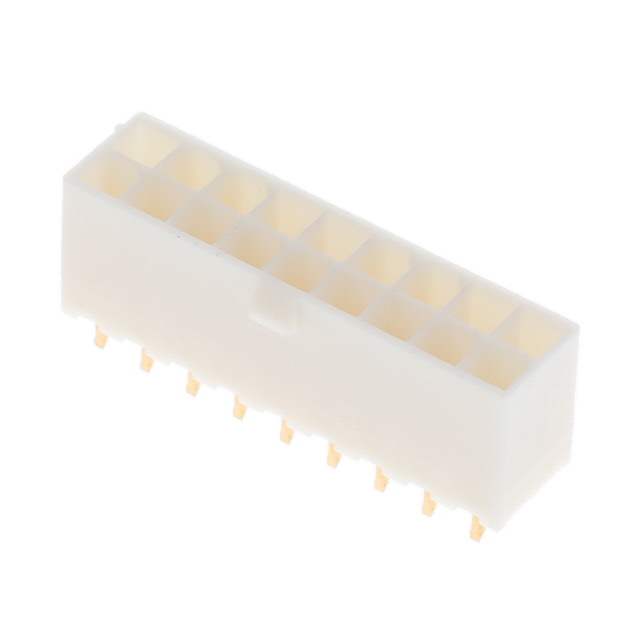

- Description：10131319-184120PLF-MTK 4.2 18P D
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：18
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) part number 10131319-184120PLF is a Minitek Pwr 4.2 series power connector header designed for high-current applications. It features a 10-position, dual-row configuration with a 4.2 mm pitch. The component utilizes copper alloy contacts with tin plating and a liquid crystal polymer (LCP) insulation material. Rated for 12.5 A current and 600 VAC voltage, it supports through-hole right-angle termination. Operating temperatures range from -40°C to +105°C.
Feature Summary
- High-current capability up to 13.5A per contact within the Minitek Pwr 4.2 HCC series
- Board lock feature ensures secure mechanical retention during mating
- Liquid crystal polymer insulation provides stability in demanding thermal environments
Applications
- Power-dense electronic systems requiring robust interconnects
- Industrial equipment utilizing high-amperage signal paths
- Server infrastructure power distribution modules
Procurement Notes
Verify the specific ordering suffix PLF against official manufacturer documentation to confirm tin plating and LCP composition. Ensure compatibility with mating receptacles regarding the 4.2 mm pitch and dual-row geometry. Confirm that the right-angle through-hole mounting style aligns with the target printed circuit board layout requirements.
Selection Notes
Select this component when high current carrying capacity is required alongside a compact 4.2 mm spacing. The right-angle orientation facilitates efficient board space utilization. Verify that the operating temperature range of -40°C to +105°C meets the environmental conditions of the intended application scenario.
Part Context
This connector belongs to the Minitek Pwr 4.2 Higher Current Connectors (HCC) family manufactured by Amphenol ICC (FCI). The series is engineered specifically for applications demanding significant power delivery within constrained physical footprints. The design prioritizes electrical reliability and mechanical stability under high-load conditions.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official Amphenol ICC (FCI) channels for valid cross-reference data or updated product line information.
