10131319-2011100LF

Overview

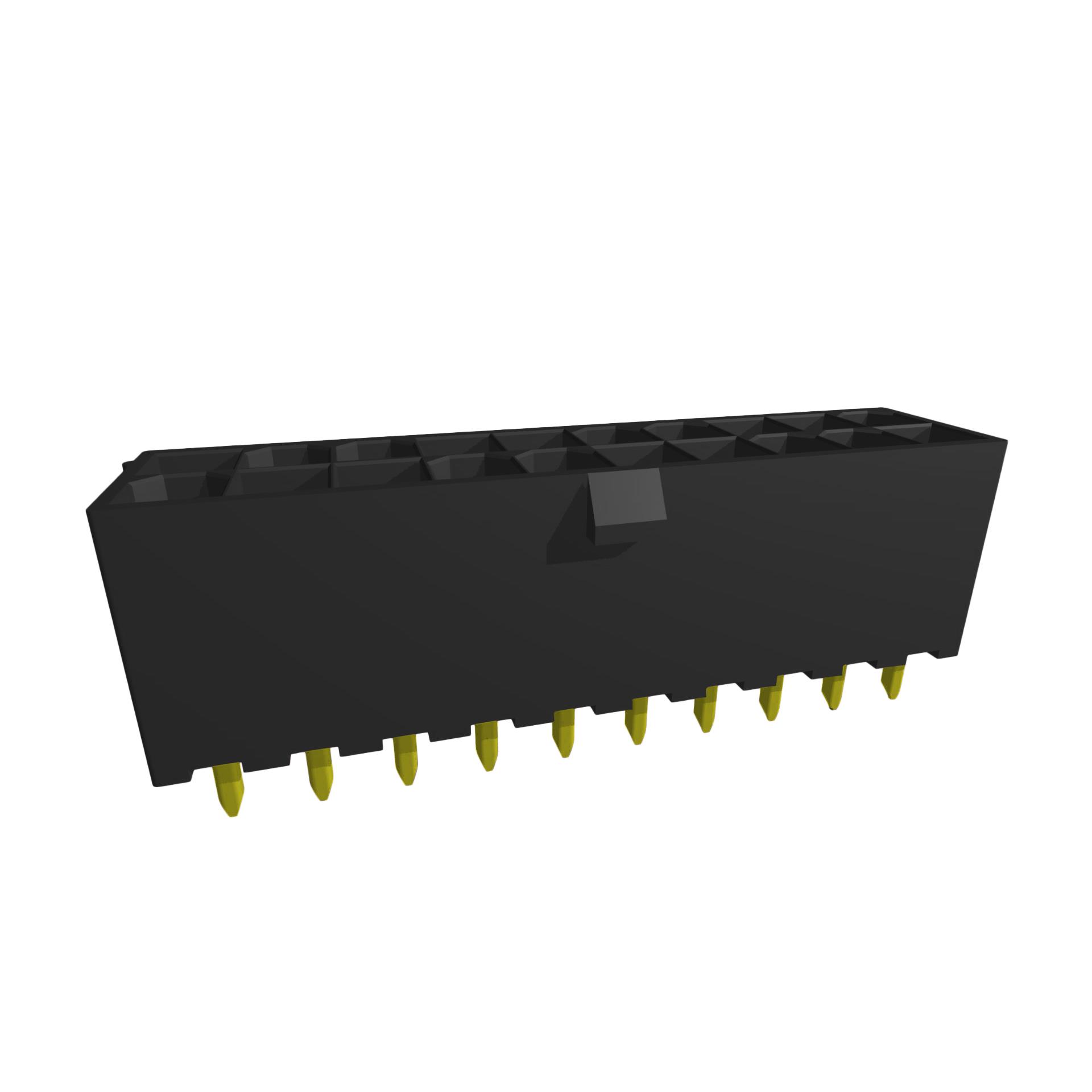

The Amphenol ICC (FCI) part number 10131319-2011100LF is a vertical power-to-board header belonging to the MinitekPwr 4.2 series. It features a 4.20 mm pitch and provides 20 positions for electrical connectivity. The connector utilizes male pin contacts made of copper with tin plating, housed in a natural-colored insulator. Designed for through-hole mounting, it supports a current rating of 12.5 A per contact. The unit operates within a temperature range of -40°C to +105°C and offers an insulation resistance of 1 GOhms.

Feature Summary

• Dual-row configuration providing high-density power distribution capabilities
• Vertical orientation optimized for standard board stacking heights
• Tin-plated copper contacts ensure reliable conductivity and corrosion resistance

Applications

• Industrial equipment power distribution
• Server and storage system power interfaces
• Telecommunications infrastructure boards

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm plating thickness and material composition. Ensure the ordering quantity aligns with factory reel packaging requirements. Confirm RoHS compliance status directly with the supplier prior to procurement to meet regulatory standards.

Selection Notes

Select this component when a 4.20 mm pitch is required for high-current applications. Verify that the board layout accommodates the dual-row spacing and vertical height constraints. Ensure mating connectors match the 20-position count and pin configuration for proper interface alignment.

Part Context

This connector belongs to the MinitekPwr 4.2 family, designed for robust power delivery in demanding environments. The series emphasizes durability and thermal stability, making it suitable for heavy-duty industrial and communication applications where reliable power transmission is critical.

Replacement Considerations

No public confirmed substitute part numbers are available.
