Product Detailed Parameters
- Description：CONN HEADER VERT 20POS 4.2MM
- Series：Minitek® Pwr 4.2 High Current
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.165" (4.20mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.165" (4.20mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.504" (12.80mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Natural
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

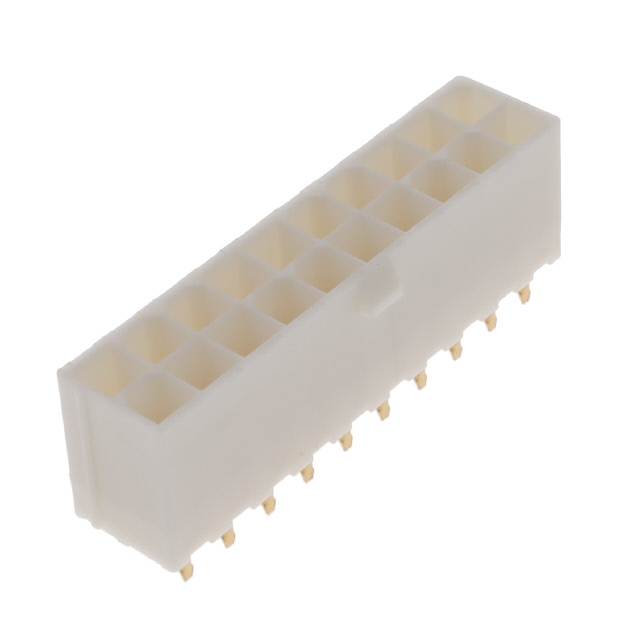

The Amphenol ICC (FCI) 10131319-20111G0LF is a Minitek Pwr 4.2 High Current header connector designed for power-to-board applications. It features a vertical through-hole mounting type with a dual-row configuration providing 20 positions. The mating pitch is 4.20 mm (0.165 inches). The contacts are male pins, and the operating temperature range spans from -40°C to +105°C.
Feature Summary
- Dual-row high-current design supporting up to 24 circuits within the series
- Vertical through-hole mounting for secure board integration
- Gold-plated male pin contacts for reliable conductivity
Applications
- Power distribution in industrial equipment
- Server and storage system backplanes
- High-power consumer electronics assemblies
Procurement Notes
Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and material specifications. Ensure the selected variant matches the required current rating and thermal performance for the target application environment. Cross-reference the part number with official distributor catalogs to confirm availability and lead times.
Selection Notes
Select this component when a high-current vertical header is required for power delivery. The 4.2 mm pitch accommodates substantial wire gauges compared to signal connectors. Consider the dual-row layout for space-constrained designs needing multiple power lines. Validate that the housing material and termination style align with the PCB assembly process.
Part Context
This part belongs to the Minitek Pwr 4.2 series, which offers various position counts ranging from 2 to 24. The series supports wire-to-wire, wire-to-board, and wire-to-panel connections. Other variants in the family differ primarily in the number of positions and specific contact plating options while maintaining the same mechanical footprint.
Replacement Considerations
Direct substitutes must match the 4.2 mm pitch, 20-position count, and dual-row vertical form factor. Verify that alternative headers support equivalent current ratings and temperature ranges. Check for compatible housing materials and termination methods to ensure mechanical interchangeability.
