10131319-20211G0LF

Overview

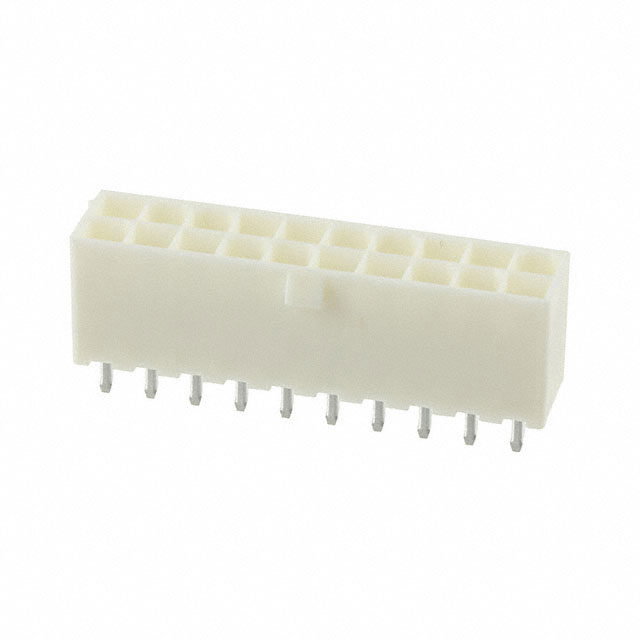

The Amphenol ICC (FCI) part number 10131319-20211G0LF is a vertical power connector header from the Minitek Pwr 4.2 series. It features 20 positions with a 4.2 mm pitch and two rows of contacts. The component utilizes gold-plated copper terminals and has a natural-colored insulator. Designed for through-hole mounting, it supports a maximum operating temperature of +105°C and a minimum of -40°C. The connector is rated for 600VAC/DC and complies with RoHS standards.

Feature Summary

• High current capacity design within the Minitek Pwr 4.2 series
• Vertical through-hole mounting configuration for board-to-board or wire-to-board applications
• Gold-plated contact surfaces ensuring reliable electrical performance

Applications

• Industrial control systems requiring high current distribution
• Power supply units and battery management systems
• Telecommunications infrastructure equipment

Procurement Notes

Verify the specific pin count and row configuration against the schematic before ordering. Confirm that the thermal environment does not exceed the +105°C rating. Ensure the PCB footprint matches the 4.2 mm pitch dimensions. Check for any recent product change notices regarding material substitutions. Validate compliance requirements with the target market regulations.

Selection Notes

Select this component when high current carrying capability is required in a compact form factor. The 4.2 mm pitch allows for larger contact areas compared to standard signal connectors. Consider the vertical orientation for space-constrained enclosures. Evaluate the insulation color and housing material for environmental resistance needs. Compare against alternative series if higher voltage ratings are necessary.

Part Context

This connector belongs to the Minitek Pwr 4.2 family, which is engineered for robust power delivery in demanding environments. The series offers various position counts and mounting styles to accommodate diverse design requirements. Amphenol ICC designs these components to meet stringent reliability standards for industrial and commercial applications.

Replacement Considerations

Direct substitutes may include other 20-position, 4.2mm pitch headers from the same manufacturer. Verify mechanical compatibility and electrical ratings before cross-referencing with competitor products. Ensure the replacement maintains the same vertical mounting profile and gold plating specification.
